Outdoor P2.5 LED Display Module 320x160

Outdoor P2.5 LED Display Module 320x160mm

Warm Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

Outdoor P2.5 128x64dot 320X160mm LED Screen Module Parameter:

LED Lamp Specification
Color	Package	Intensity	Viewing Angle	Wavelength	Testing Conditions
Red	SMD1415	48mcd	120°	622nm	25℃,8mA
Green		155mcd	120°	526nm	25℃,5mA
Blue		20mcd	120°	470nm	25℃,3mA
Module Parameter
Pixel Pitch			2.5mm
Pixel Configuration			SMD1415
Density			160,000pixels/㎡
Module Resolution			128pixel(L) *64pixel(H)
Module Dimension			320mm(L) * 160mm(H) * 18mm(D)
Driving Mode			Constant current, 1/16 duty
Electricity Parameter
Optical Ratings
Brightness			≥5,500 cd/㎡
Viewing Angle			160°(Horizontal); 120°(Vertical)
Best Viewing Distance			≥2.5m
Gray Level			16 bits
Display Color			4.4 trillion colors
Brightness Adjustment			100 grades by software or automatically by sensor
Operation Power			AC100-240V 50-60Hz Switchable
Max. Power Consumption			648 W/㎡
Avg. Power Consumption			216 W/㎡
Control System
Frame Frequency			≥60Hz
Refresh Frequency			≥3,840Hz
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			50m(WIFI); 100M (Ethernet cable); 20KM (Optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～+60 ºC
Storage Temperature			-30～+70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Operating Time			≥72 hours
Protection Grade			IP65
Out-of-Control Pixel Rate			≤0.01%

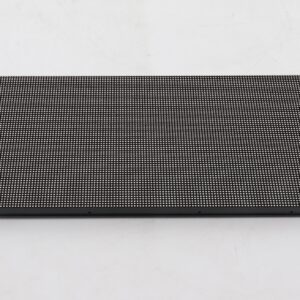

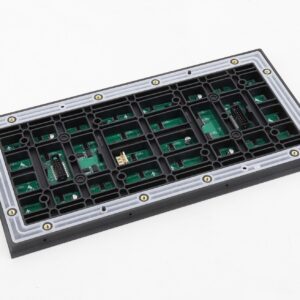

More Pictures of Outdoor P2.5 128x64dot LED Display Panel 32ox160mm:
