Outdoor Naked Eye 3D LED Display P4 Energy Saving Waterproof IP68

Outdoor Naked Eye 3D LED Display Energy Saving Waterproof IP68 P4 LED Advertising Billboard 960×960

Platinum Pro Series Outdoor Fixed LED Display Screen Solution Common Cathode Aluminum Display
1. Low Power Consumption with Energy-Saving by 75%
2. VO Standard Fire Retardation Performance
3. Dustproof and Waterproof IP68
4. High Brightness、Fast Refreshing, High Gray Scale
5. Safety, Stability, Long Lifespan
6. Maintenance for Front and Backside

Introduction for the Aluminum Fixed LED Display
Common cathode aluminum LED display is designed to meet the requirement of outdoor big occasions, it is a high protection and environmentally friendly LED display with wide universality.
It is applicable for commercial center, airport terminal, big-scale conference, city’s landmark area, exhibition center and other outdoor spaces.

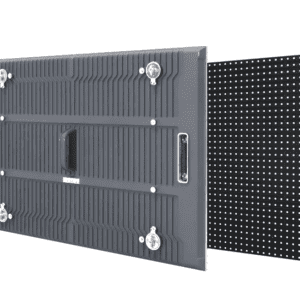

Light Product-Body
It is to adopt fully aluminum configuration solution, to make it be more light, strong and stable. Its protection level has got extremely improved, its dustproof and waterproof have reached up to IP68 which has verified by professional testing institution, the box (product-body) is just 28.50KG.

Dustproof and Waterproof IP68
Aluminum substrate is to adopt full sealed pack design, to match 3-in-1 waterproof connector, the lamp-leg is to double glue infusing technology.

Anti-Flaming Performance
It is to adopt fully aluminum material,it can anti-flaming, high temperature durability, fast heat-dissipation. The protection shade is VO standard anti-flaming material, it can’t be flamed to work under high temperature environment.

Strong Adaptability
The LED display is to adopt full sealed die-casting aluminum as substrate, to protect its inner components, to make the display body be able to withstand high temperature and low temperature, anti-corrosion, it has a strong adaptability in environment, it can work whole of day in outdoor, being super stability and high protection.

Common Cathode Aluminum Module: Energy-Saving by 75%
Common Cathode Aluminum Display is getting through to divide R, G, B for power supply solution, which is effective to reduce power consumption, the heat-generation is small, plus aluminum substrate which is fast heat-dissipation, it is natural low heat-generation. The energy-saving can be at the most of 75% under the situation to guarantee high brightness and high contrast ratio

Outdoor Naked Eye 3D LED Display Energy Saving Waterproof IP68 P4 LED Advertising Billboard 960×960

Leeman Front Maintenance Front Service Waterproof IP68 Outdoor LED Display 960×960 Specification
Model name	LEEMAN P4	LEEMAN P5	LEEMAN P6.67	LEEMAN P8	LEEMAN P10
Pixel Pitch (mm)	4	5	6.67	8	10
Pixel Density (dot/m2)	62500	40000	22478	15625	10000
Gold Wire LED Chip	NationStar	NationStar	NationStar	NationStar	NationStar
LED sealing Type	SMD1921	SMD2525	SMD2727	SMD3535	SMD3535
Module Size (mm * mm)	480*320	480*320	480*320	480*320	480*320
Module Resolution (PX* PX)	120*80	96*64	72*48	60*40	48*32
Brightness (cd/m2)	6500	7000	7500	8000	8500
Grey Scale（bit）	≥16	≥16	≥16	≥16	≥16
Driving IC	ICN2153	ICN2153	ICN2153	ICN2153	ICN2153
Refresh Rate (Hz)	3840	3840	3840	3840	3840
Maximum Cabinet Power Consumption (W)	500	500	500	500	500
Average Cabinet Power Consumption (W)	150	150	150	150	150
Cabinet Size (mm * mm)	960*960	960*960	960*960	960*960	960*960
Cabinet Weight (Kg)	25KG	25KG	25KG	25KG	25KG
Cabinet Thickness(mm)	75	75	75	75	75
Horizontal Viewing Angle (Deg)	160
Vertical Viewing Angle (Deg)	140
Input Voltage (V)	110-220V/200-240V
Working Temperature (℃)	-20~ +40
Working humidity（RH）	10%~90%
Storage temperature range	-40~ +80
Operation humidity (RH):	10%~90%
Waterproof Level	IP68
working life	10,0000H
Working Environment:	Outdoor and Indoor
Installtion Method	Rental and Fixed Installation
Maintenance method	Dual Service, Front Maintenance and Back service
Warranty time	5 years warranty time and free lifetime technical support
Certification	UL CE ETL ROHS EMC FCC ISO, IECEE, CB
