Outdoor Circular LED Display LOGO Double Sided Round LED Screen Circle LED Display Round LED Display Screen

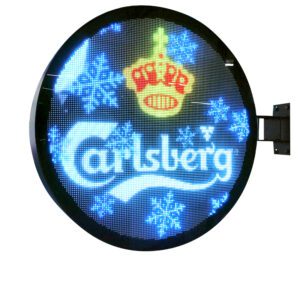

Round shape LED screen or circle Logo led video display is a unique design of Visual power. Below is a 1m diameter outdoor P4 LED circular display which is edgeless. It is mainly used to play some simple logos , image and short video to attract customers into the store.
Quick Installation

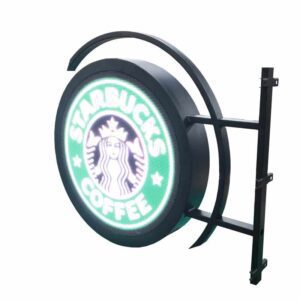

Ultra-thin design, intelligent mounting bracket for quick and easy installation.
Double Sided
Make your shops more attractive from long distance. Double-sided design can get people’s attention from different directions.
Easy operation
Plug and play, friendly use software, USB/ WiFi/4G/5G to update the programs easily.
Circle LED Display, Round LED display Features & Benefits
IP65 Waterproof
Low power consumption
Easy to assemble and maintain
Support Multiple Playback Formats
Multiple Control Method like WIFI 4G 5G Wireless
It is popularly used in banks, shops, bars, streets, cafes, etc.
Outdoor Circular LED Display LOGO Support Multiple Playback Formats
The Circle LED Display screen uses an asynchronous control card. Round LED Display supports all kinds of video and picture formats. such as mp4, jpg, png, gif, etc.
The screen is basically a plug and play device by using USB. Circle LED Display Screen also has a 4G optional controller. sending programs remotely will be a piece of cake.

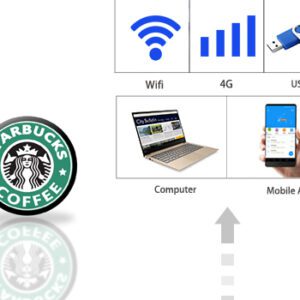

Round LED Screen Multiple Control Method
LED logo sign is not only available to be controlled by an Android App. But computer software (recommended for settings only). Media file upload can be easily done by using Wi-Fi as well. Besides, Circle LED Display Screen comes with 4GB video storage capacity. supporting extra USB extending storage. LED logo sign is a good alternative to traditional acrylic LED Logo sign and lightbox.
P4.68 Double Sided Circle LED Display P8 Round LOGO LED Display Screen Technical Parameters
Model | P4 | P8 |
Pixel pitch | 4mm | 8mm |
Destiny | 625,00 dots/m2 | 156,25 dots/m2 |
LED Type | SMD1921 | SMD3535 |
Pixel type(R / G / B) | 1R1G1B 3-in-1 | 1R1G1B 3-in-1 |
Screen Resolution | 104*104 | 64*64 |
Diameter | 60cm | 60cm |
Thickness | 10cm | 10cm |
Case Material | Aluminum | Aluminum |
Weight | 9.5kg | 8.5kg |
Drive mode | 1/13 scan | 1/8 scan |
Viewing Distance | 4-100m | 8m-100m |
Brightness | 4800 nits | 5800nits |
Viewing Angle | 160°(H) 120°(V) | 160°(H) 120°(V) |
Refresh rate | ≥3,840 Hz | ≥3,840 Hz |
Input voltage | AC220V/50Hz or AC110V/60Hz | AC220V/50Hz or AC110V/60Hz |
Maximum Power Consumption | 500w double-side | 200W double-side |
Average Power Consumption | 150w double-side | 60W double-side |
Control method: | Asynchronous (WIFI/USB and 4G optional) | Asynchronous (Wifi/USB and 4G optional) |
Temperature Operating (℃) | ﹣25℃~45℃ | ﹣25℃~45℃ |
Working Humidity | 10%~95% | 10%~95% |
IP Rating | IP65 for both sides | IP65 for both sides |
Application | Indoor & Outdoor | Indoor&Outdoor |
Certificate | CE,ROHS,UL,EMC | CE,ROHS,UL,EMC |
