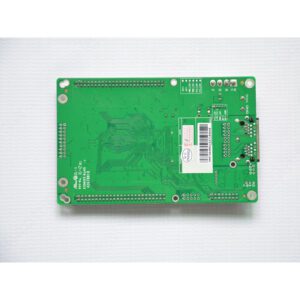

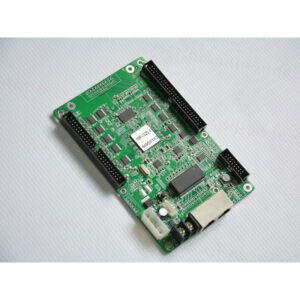

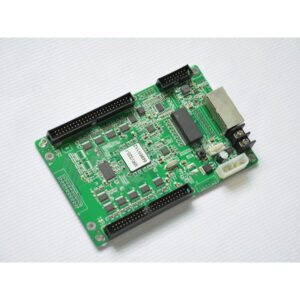

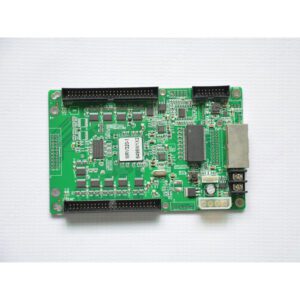

Novastar MRV320-1 LED Receiver Card Leeman LED Control Card Details
Novastar MRV320-1 led receiver card max support 256*128 pixels.
MRV320-1 is the new receiver card from Nova, single card max support 256 x 128 pixels.
It has the follow up features:
- Power supply: 3.3~5.0V DC
- Temperature monitoring
- Power supply voltage monitoring
- Working status monitoring
- 16 RGB data groups output (can be extended to 32 groups.)
- Support pixel level brightness/color calibration
- Support monitor boards
|
Specification |
MIN | TYP | MAX | UNIT |
| Rated voltage | 3.3 | 5.0 | 5.5 | V |
| Rated current | 0.33 | 0.50 | 0.55 | A |
| Working temperature | -20.0~70.0 | ℃ | ||
| Working humidity | 10.0~90.0 | % | ||
