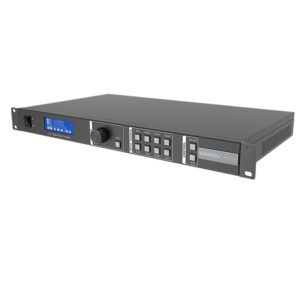

NovaLCT Novastar VX400S LED Video Processor Leeman LED Card System

Original price was: $712.00.Current price is: $705.00.

Loading capacity: 2.3 million pixel
Visualized LCD screen
Video input : 2 × CVBS, 2 × VGA, 1 × SDI, 1 × DVI, 1 × HDMI and 1 × YPbPr.
Input resolutions up to 1080p@60Hz.
HDMI/DVI video input and HDMI audio input.
High bit depth video input: 10bit/8bit.
video formats: RGB, YCbCr4:2:2 and YCbCr4:4:4.
Computer software for system configuration is not necessary.
Seamless high-speed switch and fade-in/fade-out effect.
The position and size of PIP can both be adjusted.
NovaStar G4 engine, to realize no flickering or scanning lines image.
NovaStar new-generation calibration technology.
White balance calibration and color gamut mapping based on different features of the LEDs.

Categories: Novastar LED Control Card

NovaLCT Novastar VX400S LED Video Processor Leeman LED Card System Details

Novastar VX400S LED Video Processor is a NovaStar professional LED display video controller,

VX400S is excellent in display control, also performs better in powerful front-end video processing.

It has the following features:

NovaLCT Novastar VX400S LED Video Processor Leeman LED Card System Specification
Electrical Specification	Power Interface	100-240VAC~，50/60Hz，0.7A
Electrical Specification	Power Consumption	25W
Operating Condition	Operating temperature	-20℃~+60℃
Operating Condition	Operating humidity	0%RH ~ 95%RH, Non-condensing
Physical Specifications	Size	482.6mm × 250.0mm × 50.1mm
	Weight	2.55 kg
	Gross Weight	6 kg
Packaging	Carton	550mm × 124mm × 380mm
	Accessory	1× power cable, 1×USB cable, 1×DVI cable, 1×HDMI cable 2×BNC -RCA connector
	Outer Carton	555mm × 405mm × 180mm
Noise Level (25℃/77℉)		38dB (A)
