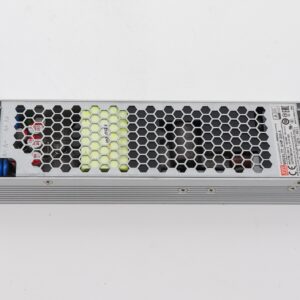

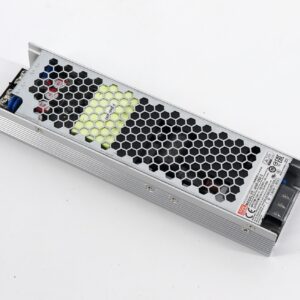

Meanwell UHP-350-5 Power Source Single-output Slim Type LED Power Supply

Meanwell UHP-350-5 Power Source Single-output Slim Type LED Power Supply Features:

Slim Low profile(31mm)
Fanless design,300W convection
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
－30~+70′ working temperature
Protections:Short circuit/Overload/
Over voltage/Over temperature
DC OK active signal and redundant function(option)
Operating altitude up to 5000 meter(Note.5)
LED indicator for power on
3 years warranty

Description of Meanwell UHP-350-5 Single-output Slim Type LED Power Supply:

UHP-350-5 is a 300W single-output slim type power supply with 31mm of low profile design. Adopting the full range 90~264VAC input. In addition to the high efficiency up to 94%,that the whole series operatesfrom-30C~70C under air convection without fan.UHP-350 has the complete protection functions and 5G anti-vibration capability;lt is complied with the international safety regulations such as TUV EN62368-1, EN60335-1, UL 62368-1 and GB4943.UHP-350 series serves as a high performance power supply solution for various industrial applications.

Meanwell UHP-350-5 Single-output Slim Type LED Power Supply Parameter:
