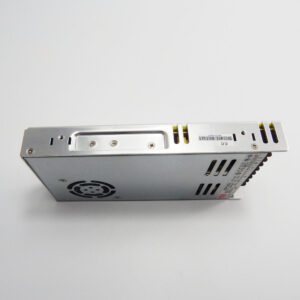

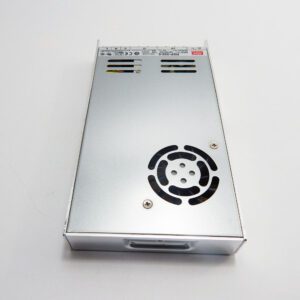

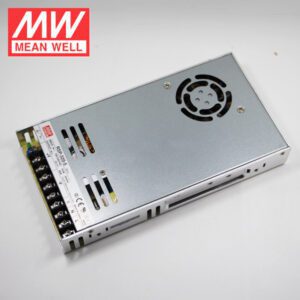

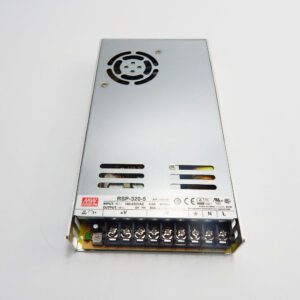

MEANWell RSP-320-5 CCG Switching Power Supply 5V/60A

MEANWell RSP-320-5 CCG Switching Power Supply 5V/60A

Protective cover design +Three anti-treatment (anti-mold, anti-moisture, anti-salt spray)

5V  60A 300WUniversal AC input / Full rangeBuilt-in active PFC function, PF>0.95High efficiency up to 90%Protections: Short circuit / Overload / Over voltage / Over temperatureForced air cooling by built-in DC Fan with fan speed control function1U low profile 30mmOptional conformal coating models (RSP-320- CC) â–¡LED indicator for power on2 years warranty

Case:806 Size:215×115×30mm

AC input voltage range———88-132V

AC/ 176-264VAC

selected by switchInput frequency———————————47-63Hz

AC inrush current——————————–Cold start Œ40A/230VACDC adjustment range—————————–±10% rated output voltageLine regulation full load————————≤0.5%Output over load protection——-110%-150% hiccup mode auto-recoveryRise，hold up time——————–50mS 20mS at full load typicalWithstand voltage——-I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1minWorking temperature—– -10~+40C @100%-+60 @60% loadStorage temperature—– -20-+85C 20%~95%RH(non condensing)Safety standards——Design refer to GB4943 UL60950-1,EN60950-1EMC standards——- Design refer to GB9254 EN55022 class ACooling method———————Forced air cooing by built-in DC fan

MEANWell RSP-320-5 CCG Switching Power Supply 5V/60A
