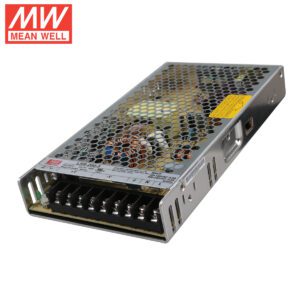

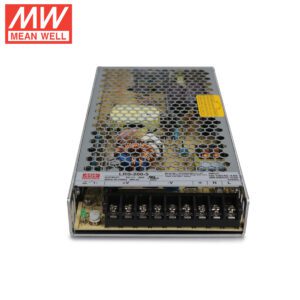

MEANWell LRS-200-5 Switching LED Display Module Power Supply

Original price was: $19.00.Current price is: $18.00.

MEANWell LRS-200-5 Switching Power Supply (40A 5V 200W)

Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO

or
SKU: MEANWell-LRS-200-5-Power Supply Categories:

Share:

MEANWell LRS-200-5 Switching LED Display Module Power Supply

Product Specifications :

Model LRS-200-5
Input Voltage Range (Note 4) 90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
AC CURRENT 4.5A/115VAC 2.5A/230VAC
LEAKAGE CURRENT <3.5mA / 240VAC
INRUSH CURRENT (max.) 40A/115VAC 55A/230VAC
EFFICIENCY (Typ. 87%
Output RATED CURRENT  40A
DC VOLTAGE  5V
RATED POWER  200W
CURRENT RANGE  0-40A
VOLTAGED ADJ. RANGE  4.5 ~ 5.6V
RIPPLE & NOISE (max.) Note.2  150mVp-p
VOLTAGE TOLERANCE Note.3 ±2.0%
LOAD REGULATION  ±1.0%
LINE REGULATION  ±0.5%
HOLD UP TIME 20ms/230VAC 16ms/115VAC at full load
SETUP, RISE TIME 1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full load
Safety WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
SAFETY STANDARDS UL60950-1 approved
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
Environment  WORKING HUMIDITY  20 ~ 90% RH non-condensing
 WORKING TEMP  -20 ~ +50 (Refer to output load derating curve)
 TEMP. COEFFICIENT  ± 0.03%/℃ (0 ~ 50℃)
 STORAGE TEMP., HUMIDITY  -20 ~ +85 , 10 ~ 95% RH
 VIBRATION  10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
 Others  DIMENSION  215*115*50mm (L*W*H)
MTBF 271.9K hrs min. MIL-HDBK-217F (25 ) ℃
Note 1:All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature
2:Rippled &  noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor
3:Tolerance: includes ast up tolerance, line regulation and load regulation
4:Please connect positive pole of input voltage with mark “L” of terminal block, connect negative pole of input voltage
with mark “N” of terminal block, using DC voltage for input voltage.
