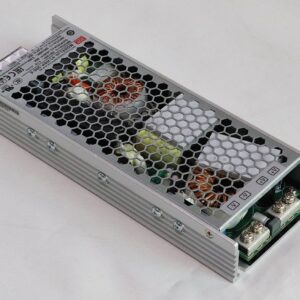

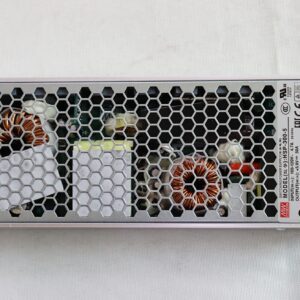

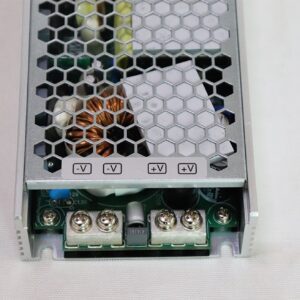

Meanwell HSP-300-5 5V60A 300W Power Source LED EMC Power Supply

Meanwell HSP-300-5 5V60A 300W Power Source LED Sign EMC Power Supply Features:

Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
Low leakage current<1mA
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Low profile:31mm
Conformal coated
LED indicator for power on
Suitable for high efficiency moving sign applications
3 years warranty

Meanwell HSP-300-5 5V60A 300W Power Source LED Sign EMC Power Supply Parameter:

MODEL		HSP-300-5
OUTPUT	DC VOLTAGE	5V
	RATED CURRENT	60A
	CURRENT RANGE	0 ~ 60A
	RATED POWER	300W
	RIPPLE & NOISE (max.) Note.2	150mVp-p
	VOLTAGE ADJ. RANGE	4.5~5.5V
	VOLTAGE TOLERANCE Note.3	±2.0%
	LINE REGULATION Note.4	±0.5%
	LOAD REGULATION Note.5	±1.0%
	SETUP, RISE TIME	2000ms, 100ms/230VAC 3000ms, 100ms/115VAC at full load
	HOLD UP TIME (Typ.)	8ms/230VAC 8ms/115VAC at full load
INPUT	VOLTAGE RANGE	180 ~ 264VAC 254 ~ 370VDC or 90~135VAC 127~190VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF≥0.93/230VAC PF ≥0.98/115VAC at full load
	EFFICIENCY (Typ.)	87%
	AC CURRENT (Typ.)	4.7A/115VAC 2.35A/230VAC
	INRUSH CURRENT (Typ.)	Cold start 30A/115VAC 60A/230VAC
	LEAKAGE CURRENT	<1mA / 240VAC
PROTECTION	OVER LOAD	105~150% rated output power
		Protection type : Hiccup mode, recovers automatically after fault
		condition is removed
		5.7 ~ 7.0V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	Shut down o/p voltage, recovers automatically after fault condition is removed
ENVIRONMENT	WORKING TEMP.	-30 ~ +70℃(Refer to “Derating Curve”)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +85℃, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/℃ (0 ~ 60℃)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY& EMC	SAFETY STANDARDS	UL60950-1,EN60950-1,CCC GB4943 approved
	WITHSTAND VOLTAGE	I/P-O/P:3.0KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/ 70%RH
	EMC EMISSION	Compliance to EN55022 (CISPR22),GB9254, Class B, EN61000-3-2,-3,
	EMC EMISSION	GB17625.1
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11; EN55024, light industry level
	EMC IMMUNITY	(surge 4KV), criteria A
OTHERS	MTBF	263.2K hrs min. MIL-HDBK-217F (25℃)
	DIMENSION	2108131mm (LWH)
	PACKING	0.8kg; 15pcs/ 12.1kg/ 0.7CUFT
