Magnimage LED-750H LED Wall Video Processor Features:
Parameter of Magnimage LED-750H LED Wall Video Processor:
| Input Indicators | ||
| Port | Quantity | Resolution |
| DVI | 2 | 1920×1080/60Hz and EDID |
| DP | 1 | Displayport 1.1,3840×1080/60Hz、
3840×2160/30Hz and EDID |
| HDMI | 2 | 1920×1080/60Hz and EDID |
| Extend Input Indication | ||
| Port | Quantity | Resolution |
| DVI | DVI×1 | 1920×1080/60Hz and EDID |
| VGA | VGA×1 | VESA standard |
| SDI | SDI×1 | 480i/60Hz 576i/50Hz
720p/60Hz 1080i/60Hz/50Hz |
| 1080p/60Hz/50Hz(3G SDI) | ||
| DP 1.1 | DP×1、DVI×1 | 3840×1080/60Hz、
3840×2160/30Hz and EDID |
| HDMI 1.4 | HDMI×1、DVI×1 | 3840×1080/60Hz、3
840×2160/30Hz and EDID |
| You can extend 2 x 2K inputs
(VGA, DVI, SDI) or 1 x 4K input (DP1.1, HDMI1.4) |
||
| Output Indication | ||
| Port | Quantity | Resolution（single DVI output） |
| DVI | 2×2 | 1024×768/60Hz
1280×1024/60Hz 1024×768/120Hz |
| 1280×720/60Hz
1440×900/60Hz 1600×1200/60Hz |
||
| 1600×1200/60Hz- Reduced
1680×1050/60Hz |
||
| 1920×1080/60Hz
1920×1080/50Hz 2176×1168/60Hz |
||
| 1920×1200/60Hz
1936×1280/60Hz |
||
| 2048×1152/60Hz
1024×1280/60Hz 1536×1536/60Hz |
||
| 1280×720/59.94Hz
1920×1080/59.94Hz |
||
| The customize output
resolutionis 3966 for maximum width or 3541 |
||
| for maximum height. | ||
| Console Specification | ||
| Power Supply | 100～240VAC，50/60Hz | |
| Consumption | 55W | |
| Operating Temperature | 0~45℃ | |
| Product Dimension | 482.6×452×66.75mm | |
| Net Weight | 2.6Kg | |

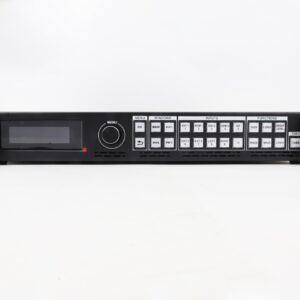

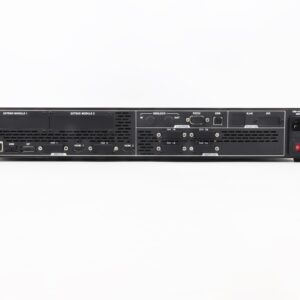

More Pictures of Magnimage LED-750H LED Wall Video Processor
