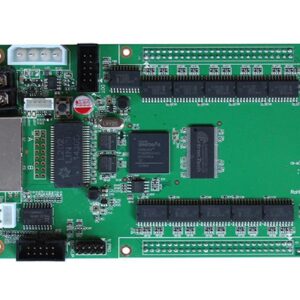

Linsn RV921 LED Receiver Card With 50 PIN Female Connector

Features of Linsn RV921 LED Receiver Card With 50 PIN Female Connector:

1.support 12-bit HDMI the colors input (required nine generations, sent cards fit)

2.by 18 signal processors, maximum support of each RGB 18 (260,000) Gray 1024X256 pixels,

3. Single card maximum support 1024 single point chromaticity correction

4. Supports single-card color space conversion

5.Support configuration file readback

6.support program replication

7.supports dual hot backup receiver card for demanding performances screen

8.Supports pixel fault detection (requires a dedicated chip support)

9.Support network cable BER test

10.support cable fault detection

11.support the cabinet door switch monitoring

12.two fan speed monitoring

13.Voltage monitoring of the 13 three-way all the way for the system, two external box power

14.Temperature monitoring

15.Humidity monitor (need to buy humidity sensor separately)

16.Smoke monitor (need to buy smoke module separately)

17.With EU standards CE-EMC.
