Leeman LED Card System Linsn RV908M32 LED Screen Receiver Board

Original price was: $17.50.Current price is: $17.00.

Linsn RV908M32 LED Screen Receiver Board

Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO

or
SKU: Linsn-RV908M32 Categories:

Share:

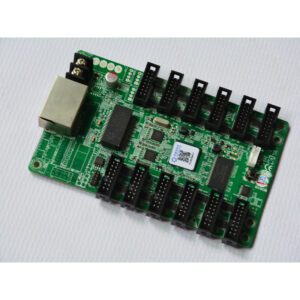

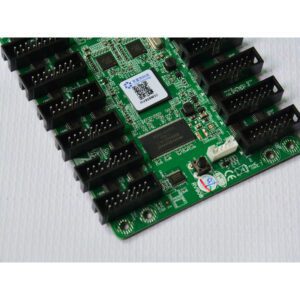

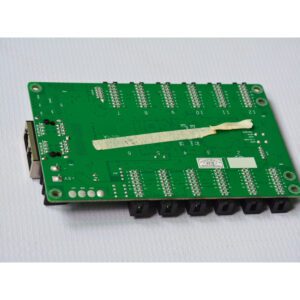

Leeman LED Card System Linsn RV908M32 LED Screen Receiver Board

RV908M, which is equivalent to RV801 + HUB75, is designed for 1/32scan led module , such as P3mm and P2.5 led display, are designed specifically for the standardization manufacturers: Free of hub card design,
have all the features of RV801, with the same size of RV801.

Leeman LED Card System Linsn RV908M32 LED Screen Receiver Board Product features:

1. Onboard the 12 16-Pin interface of HUB75 the, no extra hub needed
3. Single card maximum supports 1024X256 pixels, and 1024 grades single pixel chromaticity correction
4. Support program replication
5. using18-bit signal processor, maximum support 18-bit (260,000) gray (each of red, green and blue)
5. Support the cabinet-door monitoring (open/close)
6. support 12-bit HDMI colors input (required the 9th generation sending card)
7. Three lines Voltage monitoring: one for the system, two for cabinet power
8. Supports pixel fault detection (requires a dedicated chip support)
9. Support flat cable fault detection
10. Two lines fan-speed monitoring
11. Supports hot backup with dual receiver cards for demanding performances screen
12. Support network cable BER test
13. Supports single-card color space conversion
14. Smoke monitoring (smoke module sold separately), Temperature monitoring, Humidity monitoring (humidity sensor sold separately)
15. Pass ave EU standards CE-EMC
