IP68 P10 Front Service LED Display 960×960 Front Maintenance Outdoor Waterproof LED Module 320×320
960*960mm Cabinet Standard Size
SMD 3 in 1 LED Encapsulation technology
Energy saving LED Screen
320*320mm Panel Design
UL,CE, EMC, Rohs Approved
3 Year Warranty and 5% Spare Parts
High Protection Aluminum Chassis Panel Design, Energy Saving LED Display, Standard size cabinet with 960*960mm dimension, 320mm*320mm module size. easy to install and disassemble
Energy Saving LED Screen
Leeman IP68 waterproof 960×960 Energy Saving LED Display is latest Common Cathode Aluminum Display with size of 960*960mm, high IP68 waterproof level. Unique panel design with 320*320mm size. Ultra low heat and power consumption, saving and excellent visual experience.
320*320mm Panel Design

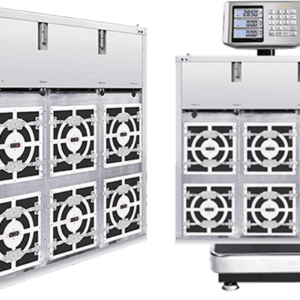

Unique panel design with 320*320mm and 960*960mm cabinet size, Ultra thin thickness with 75mm design. Weight: 25KG/m2 for Aluminum frame, 30KG/m2 for mental frame. More size 960*1280/960*960/960*640/1600*1280/ 1440*960mm is Available
Aluminum Chassis Panel

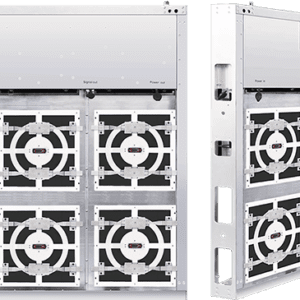

960×960 energy saving LED display adopts Aluminum Chassis design for panel.
Aluminum Chassis adopt edge lock without screwing design. full sealed design, to protect its internal components.
High Protective Performance
Aluminum material, high temperature durability, fast heat-dissipation.The whole product can Reach 5VB fireproofing level. Full sealed die-casting aluminum module chassis. Water proof connectors(between modules), Drain hole is designed at the bottom of the panel to prevent ponding.the high standard of Waterproofing Can be immersed in the specified water pressure for a long time.
Safety Harness Design
Each LED module is equipped with a safety harness to prevent the module from falling and hitting people.
Recycling, Environment and Economy
Die-casting aluminum chassis, recycle rate 90% for the whole product. Long lifetime, 30% Redundancy while use 7500nits. Using 10000nits,3000nits can sustain 7000nits using for 5 years, Good heat dissipation performance
Elegant Design
Cable-less design with Power and data cables are hidden at the bottom of the panel. Hard Connection: BTB connector replace data and power cables, high stability.
Dual Service with Frontal and Real Maintenance
Dual service mode of front and real design to save you Maintenance Cost. The LED panel can be assemble and disassemble easily and quickly.
Seamless Splicing
The die-cast aluminum module achieves seamless splicing and high flatness. the LED display has no gaps and the LED screen with Excellent display.
IP68 P10 Front Service LED Display 960×960 Front Maintenance Outdoor Waterproof LED Module 320×320
Specification | |||
Model name | P6.67 | P8 | P10 |
Pixel Pitch (mm) | 6.667 | 8 | 10 |
Pixel Density (dot/m2) | 22500 | 15625 | 10000 |
LED sealing Type | SMD2727 | SMD3535 | SMD3535 |
Module Size (mm * mm) | 480*320 | 480*320 | 480*320 |
Module Resolution (PX* PX) | 72*48 | 60*40 | 48*32 |
Brightness (cd/m2) | 6500 | 7000 | 7500 |
Grey Scale(bit) | ≥16 | ≥16 | ≥16 |
Refresh Rate (Hz) | 3840 | 3840 | 3840 |
Maximum Cabinet Power Consumption (W) | 500 | 500 | 500 |
Average Cabinet Power Consumption (W) | 150 | 150 | 150 |
Cabinet Size (mm * mm) | 960*960 | 960*960 | 960*960 |
Cabinet Weight (Kg) | 25KG | 25KG | 25KG |
Cabinet Thickness(mm) | 75 | 75 | 75 |
Horizontal Viewing Angle (Deg) | 160 | ||
Vertical Viewing Angle (Deg) | 140 | ||
Input Voltage (V) | 110-220V/200-240V | ||
Working Temperature (℃) | -20~ +40 | ||
Working humidity(RH) | 10%~90% | ||
Storage temperature range | -40~ +80 | ||
Operation humidity (RH): | 10%~90% | ||
Waterproof Level | IP68 | ||
working life | 10,0000H | ||
Working Environment: | Outdoor and Indoor | ||
Installtion Method | Fixed Installation |
