Sale

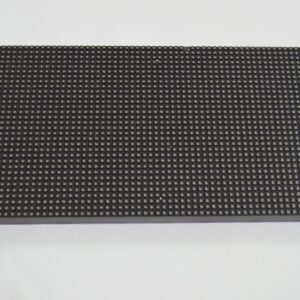

Indoor P3 SMD2121 LED Module 192x96mm
$20.50 Original price was: $20.50.$20.00Current price is: $20.00.
Indoor P3 1/16Scan 64x32dot 192x96mm SMD2121 LED Module, high quality NationStar LEDs
Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO
SKU:
P3-I16S-SMD2121-64x32
Categories: Indoor SMD LED Module
Share:
Indoor P3 SMD2121 LED Module 192x96mm
Notice before order
1) Parts included: LED module, signal cable between modules, power cable between module and power supply.
2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.
3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.
4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
Indoor P3 192x96mm SMD2121 LED Module Specification:
|
LED Lamp Specification |
||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | |
|
Red |
SMD2121 |
70-100mcd |
120°/120° |
620-625nm |
25℃,20mA |
|
|
Green |
SMD2121 |
120-200mcd |
120°/120° |
515-530nm |
25℃,10mA |
|
|
Blue |
SMD2121 |
30-40mcd |
120°/120° |
465-475nm |
25℃,5mA |
|
|
Module Parameter |
||||||
| Pixel Pitch | 3mm | |||||
| Pixel Configuration | SMD2121 | |||||
| Density | 111,111 pixels/㎡ | |||||
| Module Resolution | 64pixel(L) * 32pixel(H) | |||||
| Module Dimension | 192mm(L) * 96mm(H) * 18mm(D) | |||||
| Driving Mode | Constant current, 1/16 duty | |||||
|
Electricity Parameter |
||||||
| Optical Ratings | ||||||
| Brightness | ≥1,600 cd/㎡ | |||||
| Viewing Angle | 120°(Horizontal)； 120°(Vertical) | |||||
| Best Viewing Distance | ≥3m | |||||
| Gray Grade | 16 bits | |||||
| Display Color | 4.4 trillion colors | |||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
| Max. Power Consumption | 18 W | |||||
| Control System | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥1920Hz | |||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
| Control Distance | 100m(Ethernet cable);
20KM(optical fiber cable) |
|||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| Working Temperature | -20～+60 ºC | |||||
| Storage Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP31 | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||
