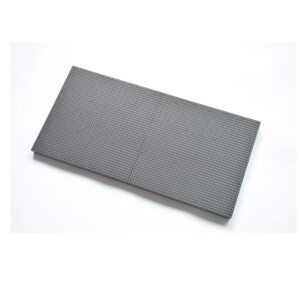

Indoor P3 SMD LED Display Module 192mmx96mm 1/16 Scan RGB Full Color LED Panel

$12.60

Pixel Pitch:3mm

LED Type: SMD2121

Module Size: 192*96 mm

Model Pixel: 64*32 Pixels

Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO

or
SKU: Leeman-P3-64X32-16S Categories:

Share:

Indoor P3 SMD LED Display Module 192mmx96mm 1/16 Scan RGB Full Color LED Panel

Indoor P3mm SMD LED Display Module Size is 192mmx96mm With 64×32 dots.

Attention:

  • We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors, even different config files.
  • If you want to build led screen, please buy enough LED Modules and Spare Parts.
  • Tariffs or Duties at the destination not included. If you have questions about Importation to your country, please contact us online sales.

Remark:

  • LED Module including the Data & Power Cables.
  • 2 Years Warranty, Ship in 24 hours, Free Online Support.
  • LED Module Can Work With Linsn, Novastar, Colorlight, Xixun HUIDU LED ConTrol Card Etc.
  • 72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) before dispatch.

Indoor P3 SMD LED Display Module 192mmx96mm 1/16 Scan RGB Full Color LED Panel Main Specifications:

Items Parameter
Product Model P3mm Indoor LED Module
Module size 192mmx96mm
resolution ratio 64*32dots
Pixel pitch 3 mm
Pixel configuration RGB 3in1
Driving method Constant Current Driving,1/16 scan
Working voltage DC5V
Module maximum power consumption 55W/Pc
Led Lamps SMD2121 (Black LED)

Electrical Parameters

Frame rate 60Hz/Second
Refresh rate ≥1920HZ
Brightness in White Color (cd/m2): 800-1000 CD/m2
Contrast ratio ≥4000:1
Life time ≥100000 hours
Operating humidity 10%-90%RH
Average power consumption ≤300W/m2 (MAX 700)
Viewing Angle 140(Horizontal),140(Vertical)
Best Viewing Distance 3m-30m
Input Voltage 110V/60HZ-220V/50Hz Switchable
