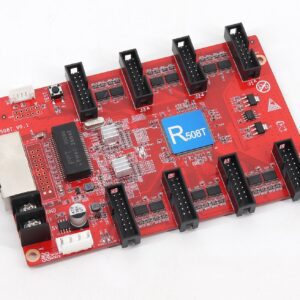

HUIDU HD-R508T LED Display Receiving Card
$13.00 Original price was: $13.00.$12.00Current price is: $12.00.
HUIDU HD-R508T large screen conventional LED panel receiving card Features：
·Integrated with 8 lines HUB75E port
·Recommended loading range: 128*512
Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO
SKU:
HD-R508T
Categories: Huidu LED Control Card
Share:
HUIDU HD-R508T LED Display Receiving Card Features：
·Integrated with 8 lines HUB75E port
·Support regular chips and PWM chips
·Support static module, any scan mode within 2~64 scan
·Support data group exchange and data group offset setting
·Smart settings, draw points, trace points, etc.
·Support multi-card cascade, arbitrary order
·Recommended loading range: 128*512
HUIDU HD-R508T LED Display Receiving Card Parameter:
| Function | Parameters |
| With sending card | Dual-mode sending box，Asynchronous sending card, Synchronous sending card, Video processor of VP series. |
| Module type | Compatible with all common IC module, supported most PWM IC module. |
| Scan mode | Supports any scanning method from static to 1/64 scan |
| Communication method | Gigabit Ethernet |
| Control range | Recommend：65,536 pixels (128*512)
Outdoor module width ≤256, Indoor module width ≤128 |
| Multi-card connection | Receiving card can be put in any sequence |
| Gray scale | 256~65536 |
| Smart setting | A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board |
| Test functions | Receiving card integrated screen test function, Test display brightness uniformity and display module flatness. |
| Communication distance | Super Cat5,Cat6 network cable within 80 meters |
| Port | 5V DC Power*2,1Gbps Ethernet port*2, HUB75E*8 |
| Input voltage | 4V-6V |
| Power | 5W |
