HUIDU HD-C16C HD-C36C HD-D16 HD-D36 WIFI 4G Full Color Asynchronous LED Display Controller Card System
HD-C16C Full Color Asynchronous Controller System is a LED control system that supports mobile APP control, Web remote control and offline play HD Video.
Features:
1. The maximum loading capacity: 204,800 pixels
2. The maximum width support 8192 pixels.
3. Equipped with Wi-Fi, Mobile APP management.
4. With a relay to control the power supply remotely.
5. Support optional 4G connection, Internet remote control.
6. 10 lines HUB75E ports onboard, can be used for one receiving card.

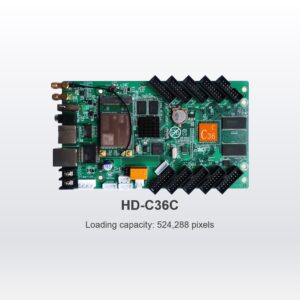

Small & Medium Leeman LED Screen Conttrol Card HD-C36C
HD-C36C Full Color Asynchronous Controller System is a LED control system that supports mobile APP control, Web remote control and offline play HD Video.
Features:
1. The maximum loading capacity: 524,288 pixels
2. The maximum width support 8192 pixels.
3. Equipped with Wi-Fi, Mobile APP management.
4. With a relay to control the power supply remotely.
5. Support optional 4G connection, Internet remote control.
6. 10 lines HUB75E ports onboard, can be used for one receiving card.
HUIDU HD-C16C HD-C36C HD-D16 HD-D36 WIFI 4G Full Color Asynchronous LED Display Controller Card System Control Mode:
Internet unified management: The play box can be connected to the Internet through 4G (optional), network cable connection, or Wi-Fi Bridge.
Asynchronous one-to-one control: Update programs by network cable connections, Wi-Fi connections or USB flash drives. LAN (cluster) control can access the LAN network through by network cable connection or Wi-Fi Bridge.
HD-C36 Full Color Asynchronous Controller System is a LED control system that supports mobile APP wireless management, Web-based cloud remote control, relay function for remote switch on/off power supply and 60Hz frame HD video image output and it support 524,288 pixels control capacity.
Supported computer software HDPlayer, mobile phone control software LedArt and HD Cloud Platform.

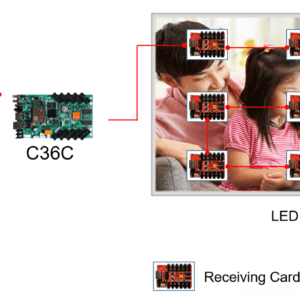

HD-C36 integrated sending card and receiving card function, can single cassette with small screen, can also add HD-R series receiving card to control bigger screen.
HUIDU HD-C36 HD-C36C Full Color Asynchronous Leeman LED Display Control Card Features:
- Control Range: 524,288 pixels.
- 4GB memory, support expending memory by U-disk.
- Support HD video hardware decoding, 60Hz frame rate output.
- Support widest 8192 pixel, Highest 1024.
- No need set IP address, it could be identified by controller ID automatically.
- Unified management of more LED display through Internet or LAN.
- Come wiht Wi-Fi, Mobile APP management.
- With a relay to control the power supply remotely.
- Equipped 3.5mm standard audio interface output.
- Support 4G connect to Internet (Optional).

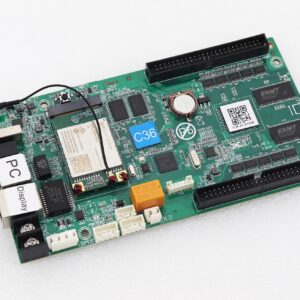

- HD C36 is equipped with 2-wire 50PIN HUB, which can be used for a receiving card.
- HD C36C is equipped with 10-wire HUB75E, which can be used for a receiving card.
HUIDU HD-C36 HD-C36C HD-C16C HD-C16 HD-C35C Full Color Asynchronous LED Display Controller Card Control Mode:

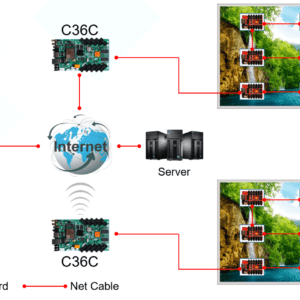

- Internet unified management: The play box can be connected to the Internet through 4G (optional), network cable connection, or Wi-Fi Bridge.
- Asynchronous one-to-one control: Update programs by network cable connections, Wi-Fi connections or USB flash drives. LAN (cluster) control can access the LAN network through by network cable connection or Wi-Fi Bridge.
HUIDU HD-C36 HD-C36C Full Color Asynchronous LED Display Control Card Parameter:
Function | Parameters |
Module type | Compatible with indoor and outdoor full color and single color module
Support conventional chip and mainstream PWM chip |
Scan Mode | Static to 1/64 scan mode |
Control Range | 1024*512, widest 8192, highest 1024 |
Gray Scale | 256-65536 |
Basic functions | Video, Pictures, Gif, Text, office, Clocks, Timing etc.
Remote, Temperature, Humidity, Brightness etc. |
Video format | Support 1080P HD video hardware decoding, direct transmission, without transcoding waiting.
AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc. |
Image Format | Support BMP, GIF, JPG, PNG, PBM, PGM, PPM, XPM, XBM etc. |
Text | Text editing, Image, Word, Txt, Rtf, Html etc. |
Document | DOC, DOCX, XLSX, XLS, PPT, PPTX etc. Office2007Document format. |
Time | Classic Analog clock, digital clock and of clock with image background. |
Audio output | Double track stereo audio output. |
Memory | 4GB Flash memory; Indefinite expanding of U-disk memory. |
Communication | Ethernet LAN port, 4G network (optional), Wi-Fi, USB. |
Working Temperature | -20℃-80℃ |
Port | INPUTS: 5V DC*1, 100 Mbps RJ45*1, USB 2.0*1, test button*1, sensor port*1, GPS port*1. |
Power | 8W |

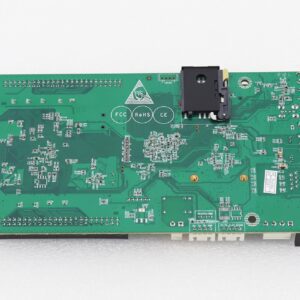

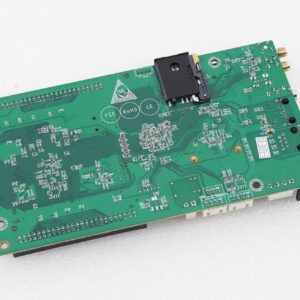

More Pictures of HUIDU HD-C36 HD-C36C Full Color Asynchronous LED Display Control Card
Download Specification
HUIDU HD-C36C Full Color Asynchronous LED Display Control Card Specification
