Huidu HD-C16 HD-C16C Full Colo...
$95.00 Original price was: $95.00.$90.00Current price is: $90.00.
Huidu HD-C3 Full-color Video L...
$135.00 Original price was: $135.00.$130.00Current price is: $130.00.
Sale
HUIDU D30 LED Moving Sign TAXI BUS led sign control card wireless usb
$41.80 Original price was: $41.80.$40.00Current price is: $40.00.
This product has been no longer in production and our recommended alternatives are as follows:HUIDU-D35
SKU:
HD-D30
Categories: Huidu LED Control Card
Share:

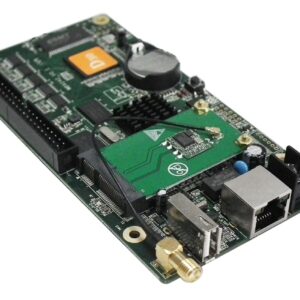

1.HUIDU D30（1024X64）Moving Sign, TAXI, BUS led sign control card Features：
①. Support indoor & outdoor full-color & single/dual color module.
②.Control range Pixel:
1024W*64H 512W*128H
③.Support 256 Gray scale.
④.Support Video、Animation、Image、Neon 、 Office file etc .
⑤.Support U-disk expanding memory, plug and play.
⑥.Plug and play without any network settings.
⑦.Support Internet /3G/4G Clouds management
2. HUIDU D30（1024X64）Moving Sign, TAXI, BUS led sign control card Parameter
|
Type |
Indoor & outdoor full-color & single/dual color module |
|
Control range |
Pixel: 1024W*64H 512W*128H |
|
Gray Scale |
256 |
|
HUB Port |
1 of 50Pin HUB |
|
Video format |
AVI、WMV、RMVB、MP4、3GP、ASF、MPG、FLV、F4V、MKV、MOV、DAT、VOB、TRP、TS、WEBM etc. |
|
Animation format |
SWF、FLV 、GIF |
|
Image format |
BMP, GIF, JPG, JPEG, PNG, GIF, etc. |
|
Text |
Text and Image being edited directly. |
|
Time |
Classic Analog clock, digital clock and various of clock with image background |
|
Other function |
Neon, animations function; Clockwise/counter-clockwise count; support temperature and humidity; Adaptive brightness adjustment function |
|
memory capacity |
256MB Flash, more than 2 hours’ program support. Indefinite expanding of U-disk memory. |
|
Communication |
U-disk; Via NetworkRJ45 port connected LAN,Internet or 3G/4G to Internet |
|
Port |
5V Power x1, 10/100M RJ45 x1, USB 2.0 x1, 1 of 50PIN HUB |
|
software |
HDPlayer |

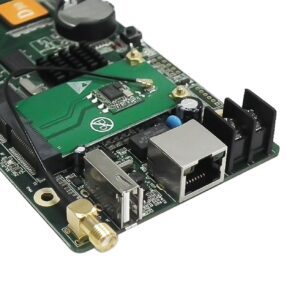

3. HD-D30 Interface explanation
① USB port，Plug in the U-disk or mobile hard disk，update program；
② RJ45 internet access .HD-D30 connected to the computer internet access, router or switch，Normal working state is orange lights on, green lights flashing
③ Power terminal to connect 5 v power supply；
④ MINIPCIE, connected 3G module or WIFI module (selectable)；
⑤ 6×2*8PIN, HUB08，connect LED screen；
⑥ Running light: Normal working status and the light is Flicker
⑦ Power light: Normal working status and the light is bright
⑧ Display light: Normal working status and the light is Flicker
⑨ SIM card slot，3G/4G SIM card.
Be the first to review “HUIDU D30 LED Moving Sign TAXI BUS led sign control card wireless usb” Cancel reply
