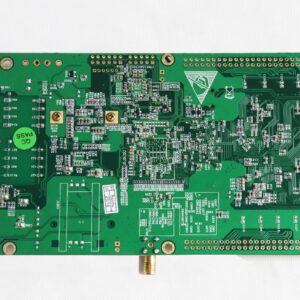

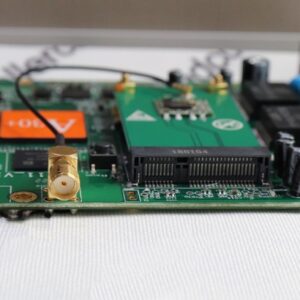

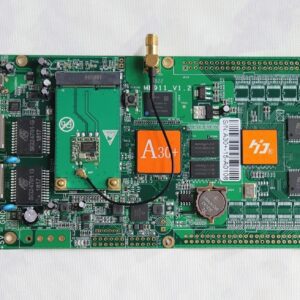

Huidu A30+ Wifi Version Asynchronous Control Card

Original price was: $154.20.Current price is: $150.00.

This product has been no longer in production and our recommended alternatives are as follows:HUIDU-C35

or
SKU: Huidu-A30+WF Categories:

Share:

Huidu A30+ Wifi Version Asynchronous Control Card Features

1.Support Indoor & outdoor full-color & single/dual color module &Virtual module

2.Support Video,Animation, Graphics,Images,Text, etc.

3.Support 0~65536 gray level

4.U-disk to infinitely expand the memory storage , U-disk plug-and-play

5.Support Standard two-track stereo output

6.No need set IP,  HD-A30/ A30+ could be identified by controller ID automatically

7.Support network cluster management and Internet/3G remote management.



Huidu A30+ Wifi Version Asynchronous Control Card Details Parameter

Type Indoor & outdoor full-color & single/dual

color module &Virtual module

SupportMBI5041/5042,MBI5050,

MY9221.MY9268 etc and PWM
Scan mode Support 1-32 scan randomly and static
Sending card

Control range

 HD-A30: 1024W*512H

HD-A30+:1024W*512

2048W*256H   512W*1024H
Receiving card

Range(1PCS)

 HD-R500: 256W*128H

HD-R501: 256W*192H

Usually 1PCS Cabinet

use 1PCS Receiving card
Gray Scale 0-65536
Video format AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V,

MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc.
Image format BMP, GIF, JPG, JPEG, PNG, GIF,PBM,PGM,

PPM,XPM,XBM etc.
Text Text and Image being edited directly. Document like

Word, Excel, PPT,PPTX ;txt, rtf, html etc.

can be edited as well after importing directly.
Time Classic Analog clock, digital clock and various

of clock with image background
Audio output Double track stereo audio output
Memory 4G Flash memory ; Indefinite expanding of

U-disk memory.
Communication 10/100M/1000M RJ45 Ethernet;3G;

Internet;LAN
Working Voltage 4.5-5.5V
Working Temperature -20℃-80℃


Port

 IN:5V Power x1, 10/100M/1000M RJ45 x1,

USB 2.0 x1,Testing button x1

OUT:1000M RJ45 X1,Audio x1,

50PIN Port x 2
Software HDPlayer



Huidu A30+ Wifi Version Asynchronous Control Card Model Selection Reference

Model Control range Pixel

（Width*Height）

 3G sub model
HD-A30 1024W*512H

( Itself also can be working as 1PCS receiving card )

 HD-A30W（WCDMA）

HD-A30C（CDMA 2000）
HD-A30+ 1024W*512H / 2048W*256H /512W*1024H

(It self can’t work as receiving card)

Support Linsn /color light Receiving card

 HD-A30+W（WCDMA）

HD-A30+C（CDMA 2000）
HD-R500 Suggest：256W*128H

/
HD-R501 Suggest：256W*192H



Port  Instruction

HUIDU A30 DATA INTERFACE

1Power Supply port, 2 Pin Power supply terminal connected to 5v power supply

2Output network port, 1000M network port, working status :D13 green lamp normally on, D9 green lamp flicker

3:Input Network port,1000M network port, working status: D11 green lamp normally on, D2 green lamp flicker

4:Audio output port, support standard two-track stereo output

5:USB port, connected to USB device, e.g. U-disk, Mobile hard disk,etc.

6:Power lamp-D4 green, working status: Normally on,

Run Lamp-D17 green, working status: Flicker

7: 3G model port

8:SIM Card slot, inserted with 3G/4G card for 3G/4G internet solutions.

9:Display lamp-D7 green, working status: Flicker

10:50pin row needles port ,connected to various screen through hub board

Note: A30+ has not this kind of port

Application:

Huidu A30/A30+ Wireless control system diagram
