Full Color P10 Outdoor RGB 160×160 DIP LED Module 320×160 High Brightness 10000nits 1R1G1B Outdoor LED Display Panel

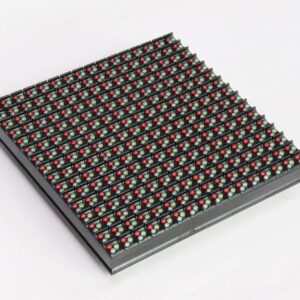

Outdoor P10mm DIP LED Display Module Size is 160mmx160mm With 16×16 dots.
Attention:
- We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
- If you want to build led screen,please buy enough LED Modules and Spare Parts.
- Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.
Full Color P10 Outdoor RGB 160×160 DIP LED Module 320×160 High Brightness 10000nits Outdoor LED Display Panel
| P10 160×160 DIP Specification | |
| LED Module | LEEMAN-P10-Outdoor-16X16-DIP |
| Resolution | 16(W) * 16(H) |
| Pixel Pitch | 10 mm |
| LED Arrangement | DIP346, 1R1G1B |
| Module Size | 160mmx160mm |
| Driver Mode | 1/4 Scan |
| Protection Grade | IP65 Waterproof |
| Brightness | 6500 – 8500 nits |
| Electricity Parameter | |
| Working Voltage | DC 5V |
| Power Supply | AC 110 / 220V, 50/60Hz |
| Maxim Power Consumption | 15 W |
| Density | 10000 pixels/m2 |
| Viewing Angle | 120 degree (horizontal & vertical) |
| Viewing Distance | 10m – 100m |
| Working Temperature | 16bit |
| Color Processing | 5000 — 9500 (choice by user) |
| Color Temperature(k) | ≤ 1mm juncture |
| Whole Display Flatness | -20°C ~ +50°C |
| Refresh Frequency | ≥1960HZ |
| Humidity(RH) | ≤ 90 ~ 95% |
| Screen Lifetime | 100000 hours |
| Warranty Time | 2 Years |
| Certificates | CE,RoHS |
High Quality LEDs:
High-Quality 1R1G1B LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.
72+ Hours Aging
72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.
