Flexible LED Display P1.53 Soft LED Display Screen Panels 240×120

Original price was: $41.58.Current price is: $35.00.

  • Pixel Pitch: 1.5625mm
  • Module Size: 240*120mm
  • Module Resolution: 128*96
  • With Bottom Frame
  • 3840HZ Refresh Rate
  • UL,CE,RoHS,FCC Approved
  • 5 Years Warranty
or
SKU: Leeman-P1.5625-Indoor Flexible LED Module-128X96 Categories:

Share:

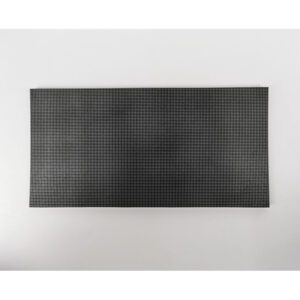

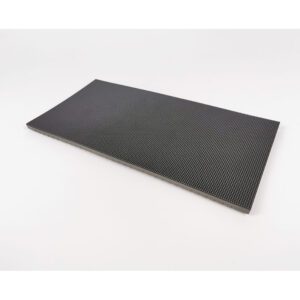

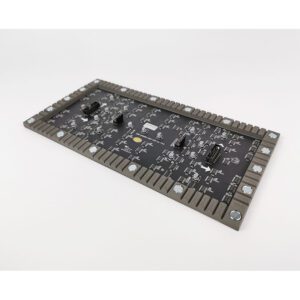

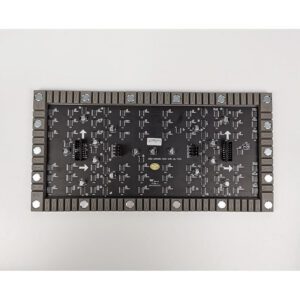

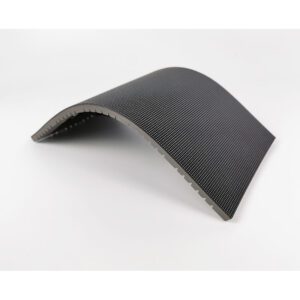

Flexible LED Display P1.53 Soft LED Display Screen Panels 240×120 HD Arc Soft LED Display With Flexible Module

P1.5625mm Flexible Soft LED Display Module Size is 240mmx120mm With 128×96dots.

Attention:

  • We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors, even different config files.
  • If you want to build led screen, please buy enough LED Modules and Spare Parts.
  • Tariffs or Duties at the destination not included. If you have questions about Importation to your country, please contact us online sales.

Remark:

  • LED Module including the Data & Power Cables.
  • 2 Years Warranty, Ship in 24 hours, Free Online Support.
  • LED Module Can Work With Linsn, Novastar, Colorlight, Xixun Huidu LED Control Card Etc.
  • 72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) before dispatch.

Flexible LED Display P1.53 240×120 Flexible Soft LED Display Module 200×150 HD Arc LED Display Flexible Module Main Specifications:

Module Specifications
1 Pixel Pitch 1.5625mm
2 Pixel Configuration SMD3in1
3 Module Resolution 128×96 pixels
4 Module Pixles 409600 pixels/module
5 Module Size 240x120mm
Specifications
1 Screen Brightness ≥1000cd/m2
2 Driving Method 1/48scan
3 Min Viewing Distance 1m
4 Max. Power Consumption 650W/m2
5 Average Power Consumption 250W/m2
6 Gray Level 14bits input, 4096 levels(212)
7 Display Color 16M
8 Frame Frequency ≥60Hz
9 Refresh Frequency ≥1920Hz
10 Uninterrupted Working Hours ≥72 hours
11 Screen Life-span ≥100,000 hours
12 MTBF ≥5,000 hours
13 Discrete Blind Spot Rate <1/10000
14 Continuous Blind Spot Rate None
15 Blind Spot Rate <1/10000
16 Screen Plainness <±1mm
17 Power Supply Mode AC220±10%  50Hz/AC110±10%  60Hz
18 Environment Temperature & Humidity Temperature:-20 Celsius~ 60 Celsius Humidity:10%~90% RH
19 Control Mode Synchronous display with control PC by DVI
20 Control System DVI video card full color control card fiber system( optional)
21 Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
22 Interface Standard Ethernet
23 Transmission Distance Multi mode fiber <500m, single mode fiber <30km,internet cable <100m
