DBStar DBS-HVT11OUT LED Display Exterior Sender Box

DBStar DBS-HVT11OUT LED Display Exterior Sender Box Features:
1.Support RGB ,the maxinmum number or color supported is one billion
2.Support sound transmission
3.Support hot backup of dual LAN lines
4.Support input of DVI digital signal
5. Support HDMI 1.3B standard ,support AADCP1.2 protocal
6.Rotation angles 0 .90. 180. 270
7.Support encryption time by software setting
8.Support dual ports lateral ,blank line and insert line setup
9.Working voltage range: 100-240V AC 50/60HZ
10.USB port communication single card can drive 1280*1024 ,1024*1200,2048*640
11.Support OE and PWM brightness adjustment ,turn on/off an lock screen through the panel key.

Parameters of DBStar DBS-HVT11OUT LED Display Exterior Sender Box:

Type	Typical value
Supported screen type	single color, dual-color,full-color, real pixel,virtual pixel.
Supported LED drivers	MBI5026/MBI5030/MBI5036/
	MBI5039/MBI5042/MBI5050/MBI6024/
	LPD6803/DM413/DMX512/ZQL9726
	TCD62D722/TC62D766/MBI5050/MBI6024
Pixels by single sending card	2048×640(dual ports)
Number of receiving cards connected by cable	<100	256
Pixels by single receiving cards	256 x192（full color）	512×384（full color）
	1024 x512（dual color）	1280 x512（dual color）
RGB data groups by single receiving card	16-24	24
Lines by one group RGB	1/2/4/8/16/32	32
Grey grades	4096(4k)	65536(64k)
Data CLK frequency	15.62MHz	31.25MHz
Refresh rate	180Hz	>3600Hz(如MBI5042)
Brightness wastage	15~20%	<5%
PWM brightness adjust degree	256(may automatically adjust by brightness sensor)
Electronic current plus brightness adjustment grade	64/256(according to led drivers)
Dot by dot revise pixels by PWM brightness	64×64	256×256
Pixels on open circuit and short circuit error detection	static：2048×16；1/2：1024×16；
	1/4：2048×16；1/8：4096×16；1/16：8192×16
Fiber transmission distance	Multi-mode fiber ：500meters； single-mode fiber：10KMs
Other functions	Power on gradual protection,
	OE Polarity switch protect screen scan tubes,
	led screen self-detecting
No sending card function	Sending images by 1000M network card PC

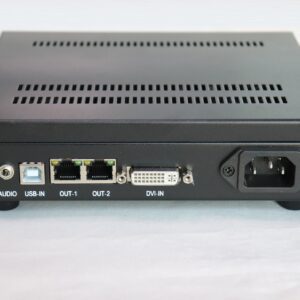

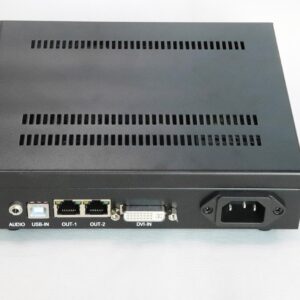

More Pictures of DBStar DBS-HVT11OUT LED Sender Box
