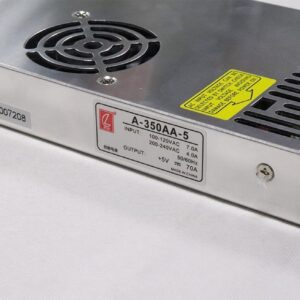

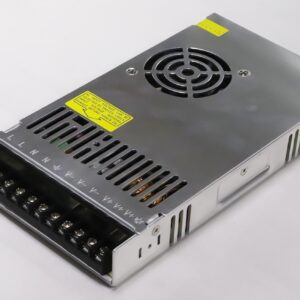

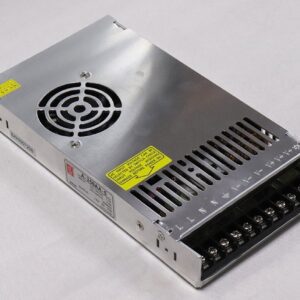

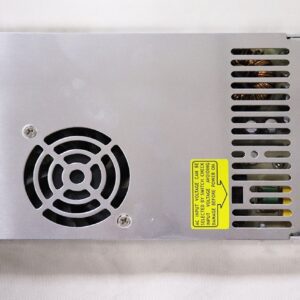

CZCL A-350AA-5 5V70A 350W Power Supply Low Profile Switching LED Power Source Features:

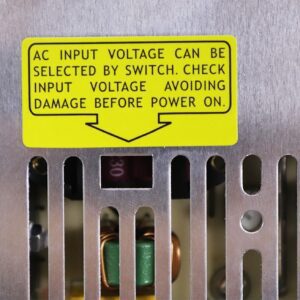

1. Switching LED Power Supply: 100~120VAC，200~240VAC Switching LED Power Supply
2.high reliability Quality, High standart quality elements parts are adopted, 100% full load high temperature aging tested.
3. Anti-dust, Anti-Moisture, Anti-Static
4. Protection: overload and short cirtuit protection
5. 2 Year Warranty
6. Low Profile: 218X117X30.5mm
7.Large load capacity: 350w output power.
CZCL A-350AA-5 5V70A 350W Power Source Switching LED Power Supply Parameters:
| input voltage:100~120VAC，200~240VAC/47~63H Switch-able | Protection:undervoltage,Overload,Short circuit |
| Output power:350W Max | Working temperature:-30~+60℃ |
| Power factor: | Overload Protection: 110%-140% Cut Down Output, After reset input. |
| Insulation voltage:I/P-O/P:3.0KVac | Safety standards:GB4943，UL60950-1，EN60950-1 |
| I/P-FG:1.5KVac;O/P-FG:0.5KVac,1min | Dissipate heat: Air cold |
| EMC Standards:: GB9254，EN55022 | Inrush current: 60A/230VAC |
| Leakage current: | Size:218X117X30.5mm |
