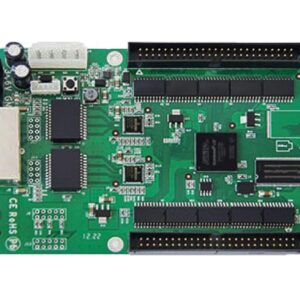

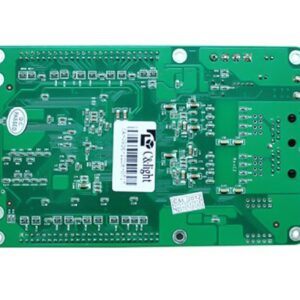

Colorlight 5A LED Display Receiver Card

Characteristics of Colorlight 5A LED Display Receiver Card:

• Superior display quality: high refresh rate, high color depth, and high brightness with the conventional chips.
• Supports all types of display module of the mainstream products (5A means any row, any column, any scan, any chips, and any shape).
• The use of more advanced algorithms, so that the receiving card to maximize the use of resources in order to improve display quality.
• Supports for high-precision pixel-by- pixel calibration in the Brightness and the chromaticity.
• Support for large area display.
• Professional design and strict testing to ensure high quality and reliable.
• Supports all conventional sending card of ColorLight, such as T7 LED sender, Q7 HD transmitter, Gigabit NIC, DMB, etc.

Specifications of Colorlight 5A LED Display Receiver Card:

Parameters	RA5
Board size	Length 143mm, width 93mm
Power consumption	3W
Current	0.6A
Input voltage	DC 5V±10%
Working temperature	-30℃~85℃
Transportation temperature (storage level)	-50℃~125℃
Weight	100g
Antistatic ability	2KV
Module specification	Any row, any column within 8192 pixels
Scanning mode	Any scan from Static to 1/32 scan
Chip support	Conventional chip
Module pumping-point	Nonsupport
Data serial transmission	Nonsupport
HUB board data exchange	Nonsupport
Grey-scale	1 -65536
Serial frequency	1KHz~41.3Mhz
Control area (single card)	Full color ,1/8 scan : 512*128
Correction area (single card)	256*256 pixels
cascade card numbers (single cable)	65536PCS
The communication distance between the key controller and the card, the card and the card	CAT5 cable≤140M CAT6 cable≤170M Optical cable≧20M
Cascade control area	65536*65536 pixels
Refresh rate	Related to scanning mode, static : 64×64module, 4096 grayscale: 4000Hz in maximum
Sending equipment	Sending card or gigabit NIC
Temperature sensor	Without
Relay	Without
Network upgrade	Support
Network port exchange	Support
Double backup	Support
Virtual pixel	Nonsupport
Compatible transmission equipment	Gigabit switch, gigabit optical fiber converter
