600x337.5 LED Display Screen P1.8 P1.875 P1.86 LED Module

600×337.5 LED Display Screen P1.8 LED Panel P1.875 P1.86 LED Module Details

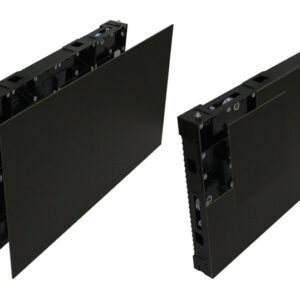

New Product Leeman LED Display LED video wall for indoor fixed installation applications. fine pixels, perfect desgin, front service for LED power supply, cards and modules, ultra lightweight, magnesium alloy cabinet design, 4:3 ratio cabinet with 600*337.5mm dimension, flatness, easy to install and disassemble .

600×337.5 LED Display P1.25 P1.56 P1.667 P1.875 HD Indoor Full Color Video Wall Screen

P1.875 LED Display Screen 600×337.5 Specification

Item	Technical Parameters
Nationstar REESTAR Full black Gold Wire SMD GOB LED Chip Parameters
Item Name	LED Type
Red LED	SMD1515 / SMD 1010 / SMD0808
Green LED	SMD1515 / SMD 1010 / SMD0808
Blue LED	SMD1515 / SMD 1010 / SMD0808
LEEMAN LED DISPLAY Module Specification
Pixel Pitch	LeemanLED-P1.875mm
Pixels Density	284,444 pixels/m2
LED Configuration	Nationstar SMD RGB 3in1
Package Mode	GOB SMD1515 / SMD 1010 / SMD0808
Module Size	240mm X 240mm
Module Resolution	128 x 128 pixels
Module Pixles	16,384 pixels
Max Power Consumpion	45W
Module Thickness	18mm
PCB Board	4 Layer PCB Board With 1.6mm
Driving IC	MBI5153 or ICN2153
Drive Type	Constant drive
Driving Method Scan Mode	1/32 scan
Port Interface Type	HUB75
Module Input Voltage	DC5V
Brightness of White Balance	≥1000cd/㎡
LEEMAN LED DISPLAY Cabinet Specification
Cabinet Size(W X H X D)	480mm x 480mm x 70mm and 600mm x 337.5mm x 70mm
Cabinet Resolution(dot)	256 x 256 pixels
Cabinet Ratio	1 : 1 or 16 : 9
Module Quanity (pcs)	4pcs
Cabinet Pixels	65536 pixels
Pixel Density	284,444 pixels/m2
Cabinet Materials	Die Casting Aluminum Cabinet for rental purpose
Cabinet Weight	5kg per cabinet
Whole LEEMAN LED DISPLAY Screen Specification
Screen Brightness	≥1000cd/m2
Driving Method	1/32 scan
Best Viewing Distance	1m – 50m
Max. Power Consumption	600W/m2
Average Power Consumption	350W/m2
Gray Level	16bits input, 4096 levels(212)
Display Color	256M
Frame Frequency	≥60Hz
Refresh Frequency	≥3840Hz – 7680Hz
Uninterrupted Working Hours	≥72 hours
Screen Life-span	≥100,000 hours
MTBF	≥10,000 hours
Discrete Blind Spot Rate	<1/20000
Continuous Blind Spot Rate	None
Blind Spot Rate	<1/10000
Protective Scale	For indoor use only
Screen Plainness	<±1mm
Power Supply Mode	AC220±10% 50Hz / AC110±10% 60Hz
Environment Temperature & Humidity	Temperature:-35 Celsius~+60 Celsius
	Humidity:10%~90% RH
Control Mode	Synchronous display with control PC by DVI
Control System	DVI video card + full color control card + fiber system(optional)
Display Content	HDMI, VGA, Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
Interface	Standard Ethernet
Transmission Distance	Multi mode fiber <500m, single mode fiber <30km,internet cable <100m
Control System	Linsn LED, Novastar LED, Colorlight LED or as you required
Power Supply Brand	G-energy, MeanWell, Chuanglian or as you required
Certificate	UL, EMC, CE, ROHS, FCC
