320×160 P4 Outdoor LED Display Module

Original price was: $42.30.Current price is: $11.40.

Pixel Pitch: 4mm

LED Type: SMD1921

Module Size: 320*160 mm

Model Pixel: 80*40 Pixels

Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO

or

Share:

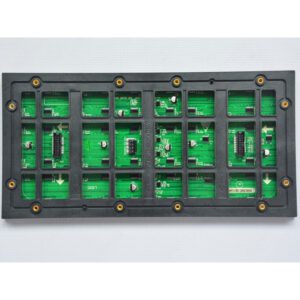

320×160 P4 Outdoor LED Display Module

Outdoor P4mm SMD LED Display Module Size is 320mmx160mm With 80x40dots.

Attention:

  • We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
  • If you want to build led screen,please buy enough LED Modules and Spare Parts.
  • Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.

320×160 P4 Outdoor LED Display Module Specifications:

Items Parameter
Product Model P4mm outdoor LED Module
Module size 320x160mm
resolution ratio 80*40dots
Pixel pitch 4mm
Pixel density 62500dots/sqm
Pixel configuration SMD 3in1
Driving method Constant Current Driving,1/10 scan
Working voltage DC5V
Module maximum power consumption 55W/Pc
Led Lamps SMD1921

Electrical Parameters

Frame rate 60Hz/Second
Refresh rate ≥1960HZ
Brightness in White Color (cd/m2): 5000-5500 CD/m2
Contrast ratio ≥4000:1
Life time ≥100000 hours
Operating humidity 10%-90%RH
Average power consumption ≤450W/m2 (MAX 850)
Viewing Angle 120(Horizontal),120(Vertical)
Best Viewing Distance 4m-40m
Input Voltage 110V/60HZ-220V/50Hz Switchable

High Quality LEDs:

High-Quality SMD 3in1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.

72+ Hours Aging

72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.
