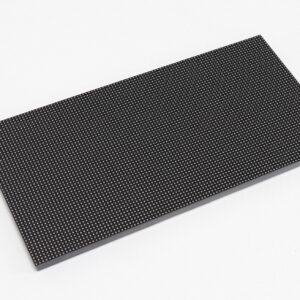

160x320 SMD LED Display Module P3.076

160×320 SMD LED Display Module P3.076mm

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P3.076 Indoor SMD LED Display Screen Module 320x160mm Parameter:

LED Lamp Specification
Color	Package	Intensity		Viewing Angle	Wavelength	Testing Conditions
Red	SMD2121	70-100mcd		120°/120°	620-625nm	25℃,20mA
Green		120-200mcd		120°/120°	515-530nm	25℃,10mA
Blue		30-40mcd		120°/120°	465-475nm	25℃,5mA
Module Parameter
Pixel Pitch			3.076mm
Pixel Configuration			SMD2121
Density			105,688 pixels/㎡
Module Resolution			104pixel(L) * 52pixel(H)
Module Dimension			320mm(L) * 160mm(H) * 18mm(D)
Driving Mode			Constant current, 1/26 duty
Electricity Parameter
Optical Ratings
Brightness			≥1,000 cd/㎡
Viewing Angle			120°(Horizontal); 120°(Vertical)
Best Viewing Distance			≥3m
Gray Grade			14 bits
Display Color			4.4 trillion colors
Brightness Adjustment			100 grades by software or automatically by sensor
Max. Power Consumption			21W
Control System
Frame Frequency			≥60Hz
Refresh Frequency			≥1920Hz
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			100m(Ethernet cable);
			20KM(optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～+60 ºC
Storage Temperature			-30～+70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Operating Time			≥72 hours
Protection Grade			IP31
Out-of-Control Pixel Rate			≤0.01%

More Pictures of 160×320 SMD LED Display Module P3.076mm Indoor HD LED Video Screen
