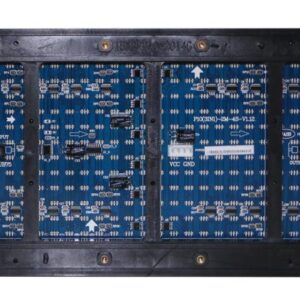

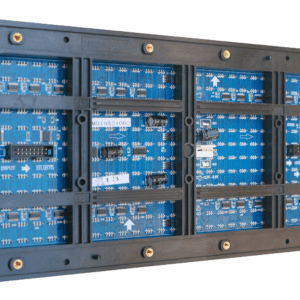

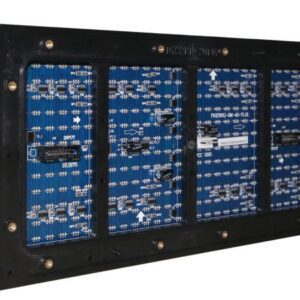

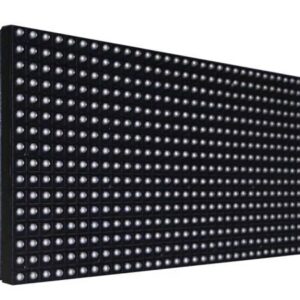

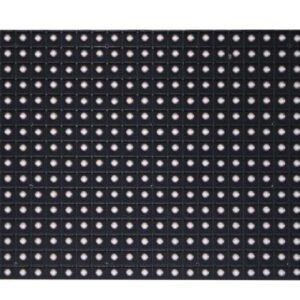

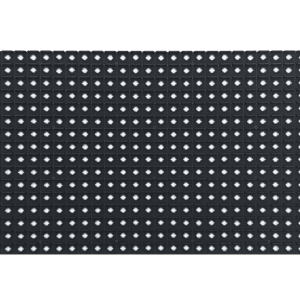

160mmx320mm P10 Outdoor DIP570 LED Display LED Module LED Panel

Outdoor P10mm DIP LED Display Module Size is 320mmx160mm With 32×16 dots.

Attention:

We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
If you want to build led screen,please buy enough LED Modules and Spare Parts.
Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.

160mmx320mm P10 Outdoor DIP570 LED Display LED Module LED Panel Main Specifications:

Item	Technical Parameters
Epistar DIP570 LED Lamp Parameters
Item Name	LED Type
Red LED	DIP 570
Green LED	DIP 570
Blue LED	DIP 570
LEEMAN LED Display Module Specification
Pixel Pitch	LeemanLED-P10mm
Pixels Density	10,000 pixels/m2
LED Configuration	Epistar DIP RGB 3in1
LED Package Mode	DIP570
Module Size	320mm X 160mm
Module Resolution	32dots(H)*16dots(V)
Module Pixles	512 pixels
Max Power Consumpion	40W
Module Thickness	28mm
PCB Board	4 Layer PCB Board With 1.6mm
Driving IC	MBI5153 or ICN2153
Drive Type	Constant drive
Driving Method Scan Mode	Dynamic 1/4 Duty constant current
Port Interface Type	HUB75
Module Input Voltage	DC 5V
Brightness of White Balance	≥10,000cd/m2
Module Mask	Pure Black mask-high contrast screen
LEEMAN LED Display Cabinet Specification
Cabinet Dimension	960mm x 960mm x 75mm
Module Quantity	18pcs
Cabinet Resolution	96*96
Cabinet Weight	24kg per cabinet
Cabinet Material	Die Casting Aluminum or steel Iron
Best viewing distance	10M～120M
Best viewing angle	160°(H) 160°(V)
Average Power consumption	450W/m2
Max.Power consumption	≤900W/m2
Frame Frequency	≥60Hz
Refresh frequency	≥3840Hz – 6420HZ
Power Supply Mode	AC220±10% 50Hz/AC110±10% 60Hz
Temperature	storage:-35℃～+85℃
Temperature	working:-20℃～+50℃
Humidity	10%-95%
IP Grade	IP65
Grey scale/colors	256levels of each color(RGB)/16.7M colors
MTBF	≥5,000hours
Screen Lifespan	≥100,000 hours
Screen Plainness	＜±1mm
Blind Spot Rate	＜0.0001
CPU	Pentium4 or above
Operation system	WINDOWS 8/10/IOS/NT/XP
Control method	Synchronous display with control PC by DVI
Control System	Linsn LED, Novastar LED, Colorlight LED or as you required
Display Content	HDMI , VGA, DVI, Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
Interface	Standard Ethernet
Transmission Distance	Multi mode fiber <500m, single mode fiber <30km,internet cable
Certificate	CE, RoHS, FCC, UL, EMC
Application	Outdoor, Indoor Rental or Fixed installation Purpose

High Quality LEDs:

High-Quality RGB 3IN1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.

72+ Hours Aging

72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.
