Indoor P2 HD LED Screen Module 256X128mm
Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO
SKU:
P2-I32S-SMD1515-128x64
Categories: Indoor SMD LED Module
Share:
128×256 P2 LED Module Indoor 8K HD LED Display
Notice before order
1) Parts included: LED module, signal cable between modules, power cable between module and power supply.
2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.
3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.
4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
Indoor P2 HD LED Screen Module 256X128mm
|
LED Lamp Specification |
||||||
| Color | Package | Intensity | Viewing
Angle |
Wavelength | Testing
Conditions |
|
|
Red |
SMD1515 |
45-65mcd |
120 °/120° |
620-625nm |
25℃, 10mA |
|
|
Green |
SMD1515 |
120-200mcd |
120 °/120° |
516-530nm |
25℃, 5mA |
|
|
Blue |
SMD1515 |
20-40mcd |
120 °/120° |
465-475nm |
25℃,5 mA |
|
|
Module Parameter |
||||||
| Pixel Pitch | 2mm | |||||
| Pixel Configuration | SMD1515 | |||||
| Density | 250,000 pixels/㎡(real pixel) | |||||
| Module Resolution | 128pixel(L) * 64pixel(H) | |||||
| Module Dimension | 256mm(L) * 128mm(H) * 18mm(D) | |||||
| Driving Mode | Constant current, 1/32 duty | |||||
|
Electricity Parameter |
||||||
| Optical Ratings | ||||||
| Brightness | ≥1,200 cd/㎡ | |||||
| Viewing Angle | 120°(Horizontal); 120°(Vertical) | |||||
| Best Viewing Distance | ≥2m | |||||
| Gray Grade | 14 bits | |||||
| Display Color | 4.4 trillion colors | |||||
| Brightness Adjustment | 100 grades by software or
automatically by sensor |
|||||
| Max. Power Consumption | 40W | |||||
| control system | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥1920Hz | |||||
| Input Signal | Composite Video, S-video,
DVI, HDMI, SDI, HD-SDI |
|||||
| Control Distance | 100m(Ethernet cable);
20KM(optical fiber cable) |
|||||
| Support VGA Mode | 800*600, 1024*768,
1280*1024, 1600*1200 |
|||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by
module, cabinet by cabinet |
|||||
| Reliability | ||||||
| Working Temperature | -20～+60 ºC | |||||
| Storage Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP31 | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||

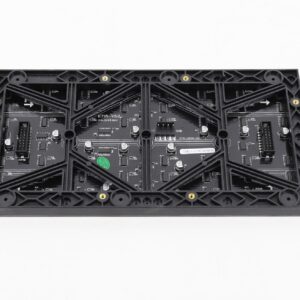

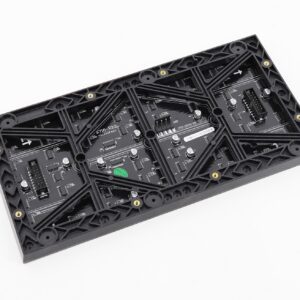

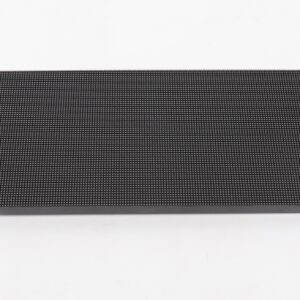

More Pictures of 128×256 P2 LED Module LED Video Wall 256X128mm:
