P1.923 Full Color LED Display 400X300 with Die-Casting Front Service LED Screen Ultra HD P1.923 P1.56 full color led display with panel 400x300mm
Original price was: $168.00.$150.00Current price is: $150.00.
P1.923 Indoor Die-cast Aluminum High Definition LED Screen Display. Rental LED Display features high brightness, high contrast, high refresh rate and high gray scale,the LED display with vivid image, clean video display and gorgeous picture quality.
Share:
P1.923 Full Color LED Display 400X300 with Die-Casting Front Service LED Screen
Notice before order:
1) Parts included : High-quality cabinets, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.
2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.
3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.
4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
P1.923 Indoor Die-cast Aluminum High Definition LED Screen Display Features:
We adopt 200x150mm module and 640x480mm die-cast cabinet to make our indoor HD series. 200x150mm module is popular in the market, hence, reducing the cost. It is full front service with external cabling, which is easier for installation and maintenance. High quality LED lamps and 3840Hz refresh rate ensures perfect display performance, meeting the requirements of live broadcast.

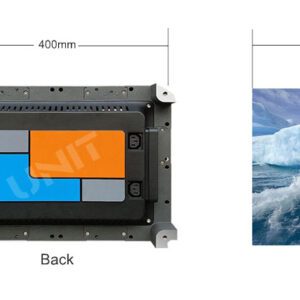

400x300mm standard size cabinet design, 90mm thickness, suitable for all 200x150mm LED display modules
HD Series Rental LED Display features high brightness, high contrast, high refresh rate and high gray scale,
the LED display with vivid image, clean video display and gorgeous picture quality.
HD Series LED display weight Only 8kg, easy for transport, save your labor cost, also light weight is convenient for installtion, assembly and disassembly.
We use best Driving IC such as 2153,2038S,NATIONSTAR LED to ensure our LED display best brightness.
P1.923 Full Color LED Display 400X300 with Die-Casting Front Service LED Screen Parameter:
| Item | Technical Parameters |
| Nationstar REESTAR Full black Gold Wire SMD GOB LED Chip Parameters | |
| Item Name | LED Type |
| Red LED | SMD1515 / SMD 1010 / SMD0808 |
| Green LED | SMD1515 / SMD 1010 / SMD0808 |
| Blue LED | SMD1515 / SMD 1010 / SMD0808 |
| LEEMAN LED DISPLAY Module Specification | |
| Pixel Pitch | LeemanLED-P1.923mm |
| Pixels Density | 270,400 pixels/m2 |
| LED Configuration | Nationstar SMD RGB 3in1 |
| Package Mode | GOB SMD1515 / SMD 1010 / SMD0808 |
| Module Size | 200mm X 150mm |
| Module Resolution | 104 x 78 pixels |
| Module Pixles | 8112 pixels |
| Max Power Consumpion | 35W |
| Module Thickness | 18mm |
| PCB Board | 4 Layer PCB Board With 1.6mm |
| Driving IC | MBI5153 or ICN2153 |
| Drive Type | Constant drive |
| Driving Method Scan Mode | 1/26 scan |
| Port Interface Type | HUB75 |
| Module Input Voltage | DC5V |
| Brightness of White Balance | ≥1000cd/㎡ |
| LEEMAN LED DISPLAY Cabinet Specification | |
| Cabinet Size(W X H X D) | 400mm x 300mm x 70mm and 600mm x 337.5mm x 70mm |
| Cabinet Resolution(dot) | 208 x 156 pixels |
| Cabinet Ratio | 4 : 3 or 16 : 9 |
| Module Quanity (pcs) | 4pcs |
| Cabinet Pixels | 32448 pixels |
| Pixel Density | 270,400 pixels/m2 |
| Cabinet Materials | Die Casting Aluminum Cabinet for rental purpose |
| Cabinet Weight | 3kg per cabinet |
| Whole LEEMAN LED DISPLAY Screen Specification | |
| Screen Brightness | ≥1000cd/m2 |
| Driving Method | 1/26 scan |
| Best Viewing Distance | 1m – 50m |
| Max. Power Consumption | 600W/m2 |
| Average Power Consumption | 350W/m2 |
| Gray Level | 16bits input, 4096 levels(212) |
| Display Color | 256M |
| Frame Frequency | ≥60Hz |
| Refresh Frequency | ≥3840Hz – 6420Hz |
| Uninterrupted Working Hours | ≥72 hours |
| Screen Life-span | ≥100,000 hours |
| MTBF | ≥10,000 hours |
| Discrete Blind Spot Rate | <1/20000 |
| Continuous Blind Spot Rate | None |
| Blind Spot Rate | <1/10000 |
| Protective Scale | For indoor use only |
| Screen Plainness | <±1mm |
| Power Supply Mode | AC220±10% 50Hz / AC110±10% 60Hz |
| Environment Temperature & Humidity | Temperature:-35 Celsius~ 60 Celsius |
| Humidity:10%~90% RH | |
| Control Mode | Synchronous display with control PC by DVI |
| Control System | DVI video card full color control card fiber system(optional) |
| Display Content | HDMI, VGA, Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| Interface | Standard Ethernet |
| Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
| Control System | Linsn LED, Novastar LED, Colorlight LED or as you required |
| Power Supply Brand | G-energy, MeanWell, Chuanglian or as you required |
| Certificate | UL, EMC, CE, ROHS, FCC |
More Pictures P1.923 Die-casting Aluminum LED Display Screen:
