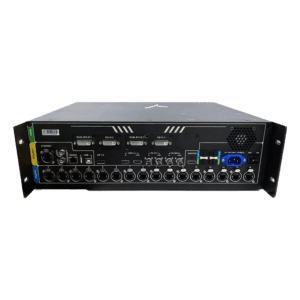

NovaStar NovaPro UHD Jr Processor All-in-one 4K LED Video Controller Box

Original price was: $6,200.00.Current price is: $4,800.00.

1). All-in-One series
2). HDMI / DP / DVI / 12G-SDI
3). 10,400,000 pixels
4). 3 Layers + 1 BKG
5). HDR10-Optima, Low Latency

or
SKU: NovaStar NovaPro UHD Jr Processor Categories: ,

Share:

NovaStar NovaPro UHD Jr Processor All-in-one 4K LED Video Controller Box is a Novastar’s new all-in-one controller that features excellent video processing capabilities, sending card functions and led screen configurations.

The NovaPro UHD Jr provides a variety of video input connectors, supporting 4K×2K@60Hz image processing and sending capabilities.

With the help of smart control software V-Can from Novastar, the NovaPro UHD Jr can enable richer image mosaic effects and faster and easier operations.

The NovaPro Jr UHD video wall controller can send the processed video to the LED screen via Neutrik Ethernet ports and optical fiber ports. Thanks to its powerful video processing capabilities and sending functions.

NovaPro UHD Jr is well suited for stage control systems, conference sites, activities, exhibition sites and other high-end rental applications as well as fine-pitch LED displays.


NovaStar NovaPro UHD Jr Processor All-in-one 4K LED Video Controller Features:

  • A variety of inputs and outputs
    Provides 1 × DP 1.2, 4 × DVI, 1 × HDMI 2.0 with loop output and 2 × 12G-SDI with loop output.
  • More output connectors, larger loading capacity
    Provides 16 × Neutrik Ethernet output and 4 × optical fiber output, with loading capacity up to 10,400,000 pixels.
    The maximum width is 16K and maximum height is 8K.
  • DVI mosaic
    An input source can be made up of at most 4 DVI input sources.
  • HDR output
  • Greatly enhances display image quality, providing more clear and vivid image.
  • Decimal frame rates
    The supported frame rates are 23.98, 29.97 and 59.94.
  • Low-latency output
    Reduces the latency from sending card to receiving card by 2 frames when the device is used together with NovaStar Armor series receiving cards
    (A8/A8s/A9s/A10s Plus).
  • Customized BKG settings
    Supports pure color and image BKGs.
  • Personalized image scaling
    Supports 3 kinds of image scaling modes: full screen, pixel to pixel, custom.
  • Capture function
    Captures input source image which can be used as a BKG image.
  • Image mosaic
    Up to 4 NovaPro UHD Jr units can be connected to load a super-large screen when used with the video distributor.
  • V-Can (smart control software from NovaStar) supported
  • 10 presets
    At most 10 user presets can be created and saved as templates which can be used directly and conveniently.
  • EDID management supported
    Supports custom EDID and standard EDID.

Input

Connector Quantity Description
DVI 4
  • Four DVIs are all single-link DVI connectors by default
    • 4 × DVI inputs
    • Each DVI: Input resolution up to 1920×1200@60Hz, downward compatible
    • 4 DVI input sources constitute 1 input source (DVI MOSAIC).
    • Standard resolutions supported
  • In dual-link mode
    • DVI 1 and DVI 3 are dual-link DVI connectors while DVI 2 and DVI 4 are unavailable.
    • DVI 1/DVI 3: Input resolution up to 3840×1080@60Hz, downward compatible
    • Standard resolutions supported
12G-SDI 2
  • Input resolution up to 4096×2160@60Hz, downward compatible
  • Standard resolutions unsupported
DP 1.2 1
  • Input resolution up to 3840×2160 @60Hz, downward compatible
  • HDCP 1.3 compliant
  • Standard resolutions supported
HDMI 2.0 1
  • Input resolution up to 3840×2160 @60Hz, downward compatible
  • HDCP 1.4 and HDCP 2.2
  • EDID management
  • Standard resolutions supported

Output

Connector Quantity Description
Ethernet port 16
  • 16 × Neutrik Gigabit Ethernet output connectors, allowing for a loading capacity of up to 10,400,000 pixels
  • Maximum loading capacity:
    • Max. width: 16K,
    • max. height: 8K
  • Maximum loading capacity of a single Ethernet port:
    • 8-bit input source: 650,000 pixels
    • 10-bit/12-bit input source: 320,000 pixels
OPT 1–4 4 10G optical connectors

  • OPT 1 transmits data of Ethernet ports 1–8.
  • OPT 2 transmits data of Ethernet ports 9–16.
  • OPT 3 serves as the hot backup or copy for OPT 1.
  • OPT 4 serves as the hot backup or copy for OPT 2.
HDMI 2.0 LOOP 1
  • HDMI loop output connector Only 1 level of device cascading supported
  • HDCP 1.4
  • EDID management
12G-SDI LOOP 2 SDI loop output connectors
MONITOR 1 HDMI connector for output monitoring
Resolution up to 1920×1080@60Hz

Control

Connector Quantity Description
ETHERNET 1 Connect to the PC for communication, or connect to the Web for device control.
USB (Type-B) 1 Connect to the PC for device control.Used as the input connector to connect a NovaPro UHD Jr unit for image mosaic
USB (Type-A) 1 Used as the output connector to connect a NovaPro UHD Jr unit for image mosaic
GENLOCK IN- LOOP 1 Connect to a synchronization signal to synchronize all the connected NovaPro UHD Jr units.
RS232 1 Connect to the control device.
