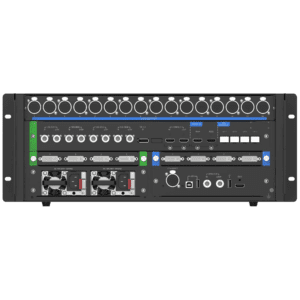

NovaStar NovaPro UHD JR 4K LED Video Processor Controller For LED Displays

Original price was: $10,500.00.Current price is: $4,500.00.

NovaStar NovaPro UHD Jr All-in-one LED Controller For LED Video Wall Screens
1). 4K + HDR: High Definition Image Quality
2). Support for multiple 4K inputs and outputs
3). Multiple safeguards: Safe and stable
4). Low Latency Support
5). Genlock support
6). 2 × deinterlacing channels

or
SKU: NovaStar NovaPro UHD JR 4K LED Video Processor Categories: ,

Share:

NovaStar NovaPro UHD JR 4K LED Video Processor Controller is a new all-in-one controller developed by Novastar. By integrating video processing, video control and LED screen configuration functions into one controller, this product is capable of receiving a variety of video signals, processing and sending images of resolutions up to ultra HD 4K×2K@60Hz.

The Novapro UHD pro control processor is equipped with industry-standard 4K connectors, and has some added new functions such as video rotation processing and video transition effects.

With the built-in Master VI smart platform, the NovaPro UHD video controller supports layer creation, property settings, and screen configuration via simple mouse, keyboard, and monitor operations.

The NovaStar NovaPro UHD JR All-in-One Controller supports sending of processed video to LED display through Neutrik Ethernet port or fiber optical connectors. With powerful video processing and sending capabilities, this product is well suited for high-end rental applications, stage control systems, and fine-pitch LED displays.

1.  A variety of input connectors: 4 × 12G-SDI connectors with loop output functions, 1 × HDMI 2.0 with loop output functions, 1 × DP 1.2, and 1 × USB playback port
1 × replaceable input card with four connectors,The input card can be SDI, DVI, HDMI or VGA.
8 × layers, 1 × OSD and 1 × LOGO, and BKG
2 × layers up to 4K×2K, 6 × layers up to 2K×1K,Layers can be scaled.

2. 4K×2K OSD, cropping, transparency adjustment, dynamic/static images and texts supported OSD can be placed at any position.
Layer transparency adjustment, irregular layers, lwatermark layer, and layer overlapping and layer flipping supported
Layer priority adjustment by z-order
Up to 8K display width or height of a single device
Playback of programs stored in USB drive
MultiViewer monitoring settings, including monitoring of input sources, PVW, PGM, or mixed preview

3. Sending the preview content to a monitor through wired network
16 × Neutrik Ethernet outputs, 4 × 10G fiber optical outputs with copy and hot backup modes
Quick and advanced screen configurations
With the built-in smart platform Master VI, LED screen configuration, layer configuration and video playback can be easily performed via the connected mouse, keyboard and monitor.

4. 10-bit processing of the input source
HDR function to make images finer and smoother
Powerful image processing capability to realize low latency from input to output
3D sending card function supported with an external emitter
Remote data transmission via a Gigabit Ethernet port or fiber optical connector



1. Integrated with everything:
NovaPro UHD is an all-in-one controller, integrating a software control system with 4K processing and 4K sending. The NovaPro UHD features many cutting edge technologies, and a single unit is able to provide comprehensive control for high end rental and other applications, simplifying operation while increasing the value of the display.

2. 4K + HDR: High Definition Image Quality
1). Support for 4K x 2K input and output, with maximum height and width of 8K
2). HDR capable, for the most stunning and lifelike image possible.
3). Highly efficient and convenient
4). Turning the difficult into easy
5). Equipped with Master VI control software, featuring integrated cabinet mapping, sending, and playback.

3. Support for multiple 4K inputs and outputs:
1). Ultra-HD inputs: 12G-SDI (4K), DP1.2 (4K), HDMI2.0 (4K), HDMI1.3
16x Neutrik Ethernet outputs (Q), single unit loading capacity of 10.4 million pixels
2). Provides you with the flexibility you need to unleash your creativity
Support for multiple layers including: Two 4K x 2K, four 2K x 1K, LOGO, and BKG, as well as irregular shaped layers

4. Multiple safeguards: Safe and stable
Support for MultiViewer monitoring, real-time input monitoring, PVW, and PGM

5. More features for the multimate visual experience:
1). Low Latency Support
2). Genlock support
3). 2 × deinterlacing channels



Input
Connector Quantity Description
12G-SDI 4 Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G) and ST-292 (HD) standard video inputs.
Input resolutions up to 4K×2K@60Hz and downward compatible Supports 12G-SDI output with loop-through.Note:When the input source is a 12G-SDI signal, you must use CANARE / L-4.5CHD+ / UHDTV-SDI SDI cables and the cable length should be less than 50 m.12G-SDI connectors 1, 2 and 3 DO NOT support the deinterlaced function, but connector 4 supports the function.
DP 1.2 1
  • Input resolutions up to 4K×2K@60Hz (8K×1K@60Hz) and downward compatible.
  • Supports HDCP 1.3.
  • DOES NOT support interlaced signal inputs.
HDMI 2.0 1
  • Input resolutions up to 4K×2K@60Hz (8K×1K@60Hz) and downward compatible
  • Supports HDCP 1.4 and HDCP 2.2.
  • DOES NOT support interlaced signal inputs. Supports HDMI 2.0 output with loop-through.
HDMI 1.3 4
  • D_4×HDMI 1.3 input card by default
  • Input resolutions up to 1920×1080@60Hz Supports HDCP 1.3.
  • Supports interlaced signal inputs.
  • The HDMI input card can be replaced by a D_4×DVI input card.
Output
Connector Quantity Description
Ethernet port 16 Gigabit Ethernet output ports

  • Maximum loading capacity: 10.4 million pixels
  • Maximum width: 16384 pixels
  • Maximum height: 8192 pixels
OPT 1–4 4 10G fiber optical output ports (copy and hot backup)

  • OPT 1 transmits data on Ethernet ports 1–8.
  • OPT 2 transmits data on Ethernet ports 9–16.
  • OPT 3 is the copy/hot backup channel for OPT 1.
  • OPT 4 is the copy/hot backup channel for OPT 2.
MVR 1 HDMI 1.3 connector
A Multiviewer connector to monitor the input source, PVM, PGM or perform mixed monitoring
AUX 1 HDMI 1.3 connector

An auxiliary output connector for connecting an auxiliary device, such as a teleprompter

Control
Connector Quantity Description
ETHERNET 1 For PC communication or network connection
USB 3
  • 1 × USB (Type-B): Connect to the PC for device debugging.
  • 2 × USB (Type-A):
    • Insert a USB drive to perform system update.
    • Connect a mouse or keyboard.
    • Output connector for device cascading
GENLOCK IN-LOOP 1 Connect a synchronization signal source to synchronize the cascaded devices.
CONTROL UI 1 Connect to a monitor for displaying the user interface of the embedded Master VI software.


1 2 3 NAME

UHD Controller
