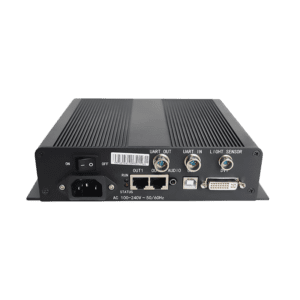

Novastar Mctrl300 send controller is Novastar’s independent control card from the M3 Series, and supports audio and video input. The M3 undertakes encoding and data processing, sending the audio and video to the display.
A single Mctrl300 independent controller supports maximum loading capacity of 2048×668@60Hz. It communicates with PC via USB port for convenience; DVI video input; audio transmission; dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup; USB port control, for cascading and control of multiple units; 1.3 million pixel loading capacity, with resolutions of 1280×1024@60Hz, 1024×1200@60Hz, 1600×848@60Hz, 1920×712@69Hz, 2048×668@60Hz and Maximum height: 3840; Maximum height:3840; 1 light sensor interface, adjust the screen brightness automatically Independent power supply; Certifications: CE, RoHS, EAC, FCC, IC.
Novastar MCTRL300 Synchronous LED Display Controller Box Hardware Features:
1). 1 × DVI input
2). 1 × audio input
3). 1 × type-B USB control port
4). UART control ports to cascade devices for uniform control; dual Ethernet outputs
5). Supports the new generation of NovaStar calibration technology, which is fast and efficient
6). 1 × light sensor connector
7). Supports resolutions up to 2048×668@60Hz and downward compatibility
8). Supports a variety of video formats
9). Rated Current: 0.5 A
10). Rated Power Consumption: 2.5 W
11). Temperature: -20°C–75°C
12). Humidity: 0% RH–90% RH, non-condensing
13). Certifications: EMC, RoHS, PFoS, FCC
Connector |
Connector Name |
Description |
Input | DVI IN |
|
AUDIO | Audio input connector | |
Output | RJ45 × 2 |
|
Function | LIGHT SENSOR | Connect to light sensor to monitor ambient brightness to realize automatic screen brightness adjustment. |
Connector | Connector Name | Description |
Control | UART IN/OUT | Input and output ports for cascading devices |
USB | Type-B USB control port for connecting to PC | |
Power | AC 100V-240V~50/60Hz | |
Indicators | ||
RUN | Device operating indicator. Working status:
|
|
STATUS | Device power indicator. Working status:
|
FILE NAME | RELEASE NOTES | SPECIFICATIONS | FIRMWARE |
---|---|---|---|
Mctrl300 Sending Controller |
